422
Max width single leaf
0.8 - 3 m
Use frequency (cycles/hour)
55 - 70

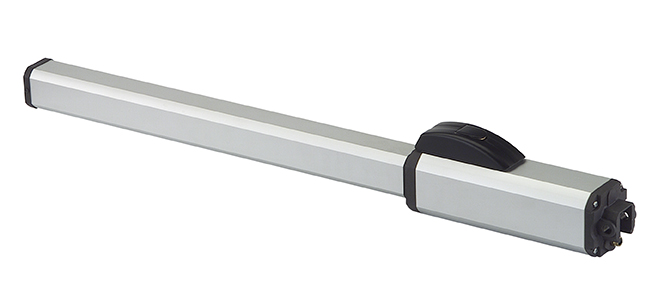

Bộ vận hành 422
- High weather resistant anti-corrosion coating
- Key-protected release device
- Front attachment with spherical joint
- Pedestrian version for small leaves
This product can become SAFE &GREEN with appropriate accessories
THÔNG SỐ KỸ THUẬT
| Model |
422 SBS
422 CBAC
422 CBC Ped
|
| Power Supply Voltage | 230V~ 50 Hz |
| Electric motor | Asynchronous single phase |
| Max Power | 220 W |
| Max push force |
6900 N
5000 N
3800 N
|
| null |
10 mm/s
13 mm/s
15 mm/s
|
| Motor-pump unit capacity |
0.75 lpm
1 lpm
1.5 lpm
|
| null |
250 mm
170 mm
|
| Max leaf opening angle | 110° |
| Operating ambient temperature | -20 °C ÷ +55 °C |
| Thermal protection | 120° |
| Protection class | IP55 |
| Weight |
7 Kg
6.3 Kg
|
| Type of oil | FAAC HP OIL |
| Mounting brackets | Rear attachment to be welded/screwed - front attachment to be welded |
| Dimensions (WxDxH) |
987 x 120 x 85 mm
827 x 120 x 85 mm
|
MÔ HÌNH
|
Model |
Use |
Electronic equipment |
Item code |
|
|---|---|---|---|---|
|
Max width single leaf |
Frequency of use (cycles/hour) |
|||
|
422 CBAC |
1.8 m |
55 |
Not included |
104200 |
|
422 SBS |
3 m |
55 |
Not included |
104210 |
|
422 Ped. CBC |
1.2 m (min 0.8) |
70 |
Not included |
104213 |
Packages 422 include: a hydraulic operator with hydraulic lock in opening/closing (422 CBAC), without lock (422 SBS), installation accessories, a release key, 400V 8μF thrust capacitor.
Packages 422 Ped. CBC include: a hydraulic operator for pedestrian passages with hydraulic lock in closing (422 Ped. CBC), installation accessories, a release key, a 400V 8μF thrust capacitor. operator with hydraulic lock in opening/closing (422 CBAC), without lock (422 SBS), installation accessories, a release key, 400V 8μF thrust capacitor.

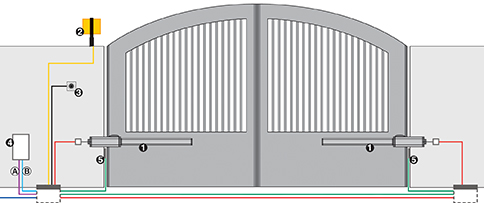

HƯỚNG DẪN LẮP ĐẶT
Low voltage cabling
3x0.50 mm2 cable
2x0.50 mm2 cable
Power cabling (230V)
3x1.5 mm2 +T cable
2x1.5 mm2 +T cable
2x1.5 mm2 cable
|
Ref |
Q.ty |
Description |
Item code |
|---|---|---|---|
|
1 |
2 |
422 CBAC Actuators |
104200 |
|
2 |
1 |
FAACLIGHT 230V flashing light |
410013 |
|
3 |
1 |
Key operated button T10 E |
401019001-36 |
|
4 |
1 |
E045 electronic control board |
790005 |
|
4 |
1 |
Enclosure mod. L for electronic control boardsXF 433 MHz receiver |
720118 |
|
4 |
1 |
XF 433 MHz receiver |
319006 |
|
5 |
1 |
XP 15 B pair of photocells |
785149 |
|
__ |
1 |
XT2 433 SLH LR 2-channel transmitter |
787007 |
PHỤ KIỆN VÀ LINH KIỆN
Electronic control boards
E045 electronic control board
Thông tin chi tiết
Item code: 790005
E145 electronic control board
Thông tin chi tiết
Item code: 790006
Accessories
BUS XIB interface If using board E045 or E024S with photocell no BUS)
Item code: 790062
Plate to be walled
Item code: 737604
Enclosure mod. L for electronic control boards
Item code: 720118
Enclosure mod. E for electronic control boards
Item code: 720119
Enclosure mod. LM for electronic control boards
Item code: 720309
SAFEcoder BUS magnetic absolute encoder (FAAC patent)
Item code: 404040
Joint for RTA sheath
Item code: 710010
Release lock with customised key
Item code: 712501001-36
Spares
