400

Max width single leaf

2.2 - 7 m

Use frequency (cycles/hour)

50 - 70

Bộ vận hành 400

  • Wide and versatile range for heavy industrial gates or gates with high use frequency
  • Hydraulic block resistant to intrusion attempts (mod. CBC - CBAC)
  • Silent movement
  • Key-protected release device
  • Front attachment with spherical joint
This product can become SAFE &GREEN with appropriate accessories

Có thể bạn quan tâm: 422   S450   402

THÔNG SỐ KỸ THUẬT

Model
400 CBC
400 CBAC
400 SB
400 SBS
400 CBAC L
Power Supply Voltage 230V~ 50 Hz
Electric motor Asynchronous single phase
Max Power 220 W
Max push force
6200 N
7750 N
4650 N
null
10 mm/s
7.5 mm/s
10 mm/s
Motor-pump unit capacity
1 lpm
0.75 lpm
1.5 lpm
null
270 mm
390 mm
Max leaf opening angle 125°
Operating ambient temperature -20 °C ÷ +55 °C
Thermal protection 120°
Protection class IP55
Weight
8.6 Kg
10 Kg
Type of oil FAAC HP OIL
Mounting brackets Rear attachment to be welded/screwed - front attachment to be welded
Dimensions (WxDxH)
1031 x 113 x 85
1285 x 113 x 85

MÔ HÌNH



Model

Use

Electronic

equipment

Item code

Max width

single leaf

Frequency of use

(cycles/hour)

400 CBC

2.2 m

70

Not included

104205

400 SB

4 m

70

Not included

104206

400 SBS

7 m

60

Not included

104203

400 CBAC

2.2 m

70

Not included

104201

400 CBAC L

2.2 m

50

Not included

104202

Packages 400 include: a hydraulic operator with closing hydraulic lock (400 CBC), without hydraulic lock (400 SB), without hydraulic lock for heavy or panelled leaves (400 SBS), a hydraulic operator with hydraulic lock at opening/closing (400 CBAC and CBAC L), installation accessories, a release key, a 400V 8μF thrust capacitor.

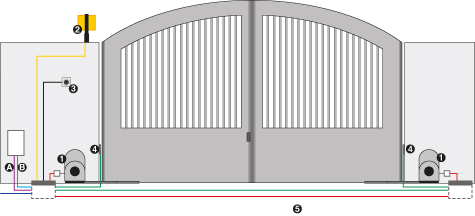

HƯỚNG DẪN LẮP ĐẶT



__logo__WireViolet__ __logo__A__ Low voltage cabling

__logo__WireBlack__ 3x0.50 mm2 cable

__logo__WireGreen__ 2x0.50 mm2 cable

__logo__WireCyan__ __logo__B__ Power cabling (230V)

 3x1.5 mm2 +T cable

2x1.5 mm2 +T cable

2x1.5 mm2 cable



Ref

Q.ty

Description

Item code

1

2

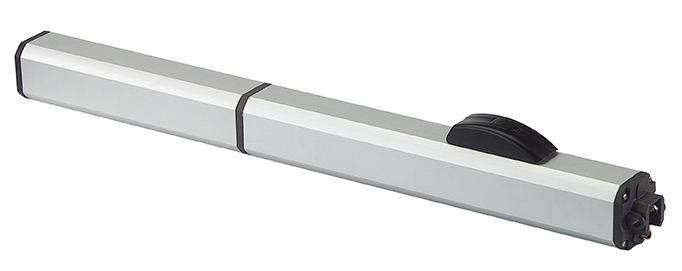

400 SBS Actuators

104203

1

1

Pillar strike plate

712990

2

1

FAACLIGHT 230V flashing light

410013

3

1

Key operated button T10

401010001-36

3

1

Plastic enclosure to be walled in

720086

4

1

E045 electronic control board

790005

4

1

Enclosure mod. L for electronic control boards

720118

4

1

XF 433 MHz receiver

319006

5

2

XP 15 B pair of photocells

785149

5

2

Column (Max height 628 mm)

401039

5

2

Foundation plate for aluminium column

737630

6

1

12Vac Electric lock complete with floor strike plate

712650

6

1

Internal cylinder with 2 keys

712651001

6

1

External cylinder with 2 keys

712652001

__

1

XT2 433 SLH LR 2-channel transmitter

787007

PHỤ KIỆN VÀ LINH KIỆN

Electronic control boards

E045 electronic control board Thông tin chi tiết

Item code: 790005

E145 electronic control board Thông tin chi tiết

Item code: 790006

Accessories

BUS XIB interface If using board E045 or E024S with photocell no BUS)

Item code: 790062

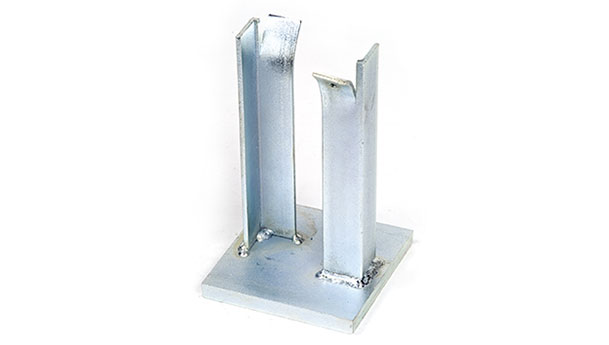

Plate to be walled

Item code: 737604

Enclosure mod. L for electronic control boards

Item code: 720118

Enclosure mod. E for electronic control boards

Item code: 720119

Enclosure mod. LM for electronic control boards

Item code: 720309

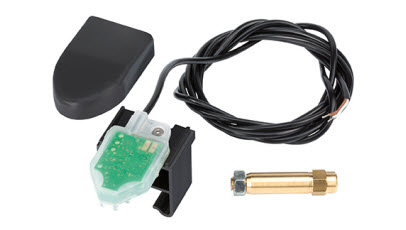

SAFEcoder BUS magnetic absolute encoder (FAAC patent)

Item code: 404040

Joint for RTA sheath

Item code: 710010

Release lock with customised key

Item code: 712501001-36

Positive Stop - mechanical stops op/cl (can be integrated on mod. 400)

Item code: 490042

Positive Stop - mechanical stops op/cl (can be integrated on mod. 400 long)

Item code: 490043

Spares

If you are interested in a spare part, go to the spare parts area. ATTENTION: (The area will not be

Item code:
