S450

Max width single leaf

2 - 3 m

Use frequency

Continuous use

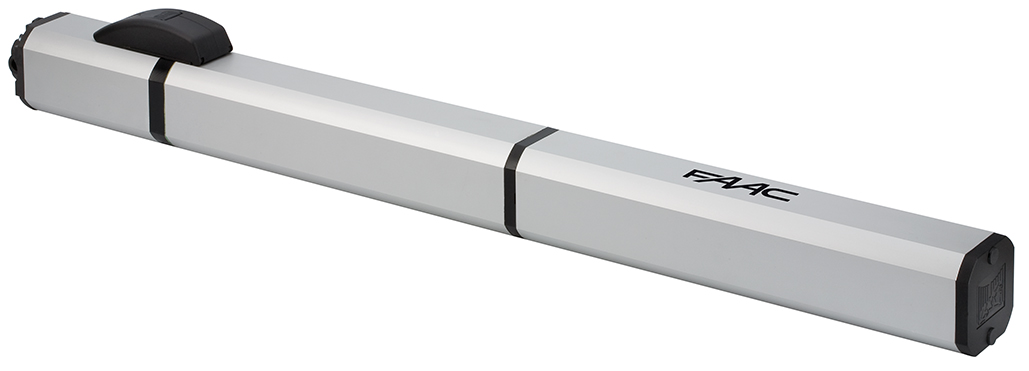

Bộ vận hành S450

Hybrid technology
Integrated encoder with anti-crushing function and reverse upon obstacle detection
Useful stroke 311 mm
New 'multi-position' mounting bracket with no welding required.
Opening/Closing mechanical stops supplied as standard
Front attachment with spherical joint

This product can become SAFE &GREEN with appropriate accessories

Model	S450H CBAC S450H SB
Power Supply Voltage	230V~ 50 Hz
Electric motor	With brushes 24V
Max Power	60 W
Max push force	> 5000 N > 5000 N
null	>25 mm/sec
null	311 mm
Max leaf opening angle	110°
Operating ambient temperature	-20 °C ÷ +55 °C
Protection class	IP55
Weight	6.5 Kg
Type of oil	FAAC HP OIL
Mounting brackets	Rear multi-position bracket to be screwed - front adjustable to be screwed
Dimensions (WxDxH)	1113 x 85 x 119 mm

Model	Use	Electronic equipment	Item code
S450H CBAC	2 m	Continuous use	Not included	104100
S450H SB	3 m	Continuous use	Not included	104101

Model

Use

Electronic

equipment

Item code

Max width

single leaf

Use

frequency

S450H CBAC

2 m

Continuous use

Not included

104100

S450H SB

3 m

Continuous use

Not included

104101

The packs include: a hydraulic operator, accessories for installation, a release key.

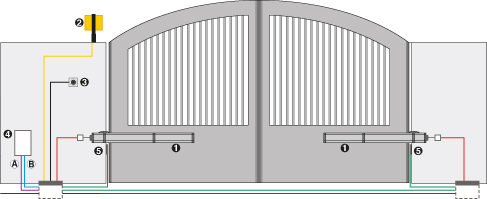

__logo__WireViolet__ __logo__A__ Low voltage cabling

__logo__WireBlack__ 3x0.50 mm² cable

__logo__WireGreen__ 2x0.50 mm² cable

__logo__WireRed__ 2x0.50 mm² cable + 2x2.5 mm² cable

__logo__WireYellow__ 2x1.5 mm² cable

__logo__WireCyan__ __logo__B__ Power cabling (230V)

__logo__WireBlue__ 2x1.5 mm² +T cable

Ref	Q.ty	Description	Item code
1	2	S450H CBAC Actuators	104100
2	1	FAACLIGHT 24V flashing light	410014
3	1	Key operated button T10 E	401019001-36
4	1	E024S Electronic equipment with enclosure	790286
4	1	XF 433 MHz receiver	319006
5	1	XP 15 B pair of photocells	785149
__	1	XT2 433 SLH LR 2-channel transmitter	787007
