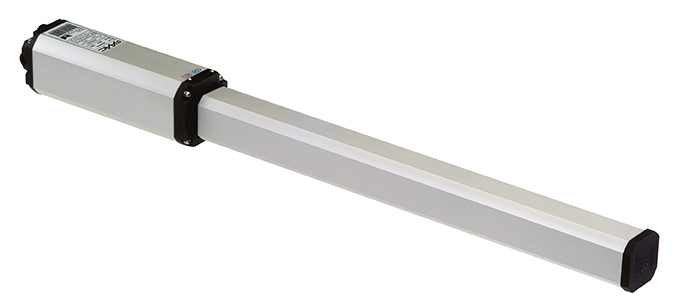

Bộ vận hành 402

  • Compact design, ideal for installations in limited spaces
  • High weather resistant anti-corrosion coating
  • CBC versions (with lock in closing) and SBS (without slow lock).
This product can become SAFE &GREEN with appropriate accessories

Có thể bạn quan tâm: 400   422   S450

THÔNG SỐ KỸ THUẬT

Model
402 CBC
402 SBS
Power Supply Voltage 230V~ 50 Hz
Electric motor Asynchronous single phase
Max Power 220 W
Max push force
5000 N
6900 N
null
13 mm/s
10 mm/s
Motor-pump unit capacity
1 lpm
0.75 lpm
null 250 mm
Max leaf opening angle 110°
Operating ambient temperature -20 °C ÷ +55 °C
Thermal protection 120°
Protection class IP55
Weight 6.5 Kg
Type of oil FAAC HP OIL
Mounting brackets Rear attachment to be welded/screwed - front attachment to be welded
Dimensions (WxDxH) 959 x 85 x 61 mm

MÔ HÌNH



Model

Use

Electronic

equipment

Item code

Max width

single leaf

Frequency of use

(cycles/hour)

402 CBC

1.8 m

55

Not included

104468

402 SBS

3 m

55

Not included

104474

Pack 402 CBC includes: a hydraulic operator with closing hydraulic lock, installation accessories, a triangular release key, a 400V 8μF thrust capacitor.

Pack 402 SBS includes: a hydraulic operator without closing hydraulic lock, installation accessories, a triangular release key, a 400V 8μF thrust capacitor.

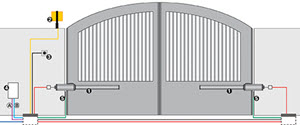

HƯỚNG DẪN LẮP ĐẶT



__logo__WireViolet__ __logo__A__ Low voltage cabling

__logo__WireBlack__ 3x0.50 mm2 cable

__logo__WireGreen__ 2x0.50 mm2 cable

__logo__WireCyan__ __logo__B__ Power cabling (230V)

__logo__WireRed__ 3x1.5 mm2 +T cable

__logo__WireBlue__ 2x1.5 mm2 +T cable

__logo__WireYellow__ 2x1.5 mm2 cable



Ref

Q.ty

Description

Item code

1

2

402 CBC Actuators

104468

2

1

FAACLIGHT 230V flashing light

410013

3

1

Key operated button T10 E

401019001-36

4

1

E045 electronic control board

790005

4

1

Enclosure mod. E for electronic control boards

720119

4

1

XF 433 MHz receiver

319006

5

1

XP 15 B pair of photocells

785149

__

1

XT2 433 SLH LR 2-channel transmitter

787007



This solution can also be found in the kit:

LEADER kit

PHỤ KIỆN VÀ LINH KIỆN

Electronic control boards

E045 electronic control board Thông tin chi tiết

Item code: 790005

E145 electronic control board Thông tin chi tiết

Item code: 790006

Accessories

BUS XIB interface If using board E045 or E024S with photocell no BUS)

Item code: 790062

Plate to be walled

Item code: 737604

Enclosure mod. L for electronic control boards

Item code: 720118

Enclosure mod. E for electronic control boards

Item code: 720119

Enclosure mod. LM for electronic control boards

Item code: 720309

SAFEcoder BUS magnetic absolute encoder (FAAC patent)

Item code: 404040

Supplementary triangular release key (10 pc. pack)

Item code: 713002

Joint for RTA sheath

Item code: 710010

Spares

If you are interested in a spare part, go to the spare parts area. ATTENTION: (The area will not be

Item code:
