Bộ vận hành 415 - 230V

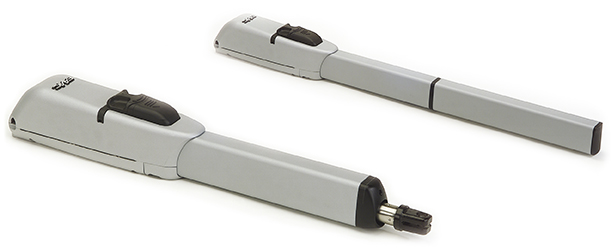

  • ''In axis'' thrust operator
  • Versions with rod travel of 300 mm (max 3 m leaf) and 400 mm (max 4 m leaf) available
  • Die-cast aluminium body, entirely double-coat painted for longer duration
  • Manual release device with simplified key-protected activation
  • Horizontal cable outlet to allow installation near the ground (low installation)
This product can become SAFE &GREEN with appropriate accessories

Có thể bạn quan tâm: 400   422   S450

THÔNG SỐ KỸ THUẬT

Model
415
415 L
Power Supply Voltage 230V~ 50 Hz
Electric motor Asynchronous single phase
Max Power 300 W
Max push force 3000 N
null 16 mm/s
null
300 mm
400 mm
Max leaf opening angle 110°
Operating ambient temperature -20 °C ÷ +55 °C
Thermal protection 140°C
Protection class IP54
Weight
7.8 Kg
8 Kg
Mounting brackets Rear attachment to be welded/screwed - front attachment to be welded
Dimensions (WxDxH)
835 x 105 x 148 mm
940 x 105 x 148 mm

MÔ HÌNH



Model

Use

Electronic equipment

Item code

Max width

single leaf

Use frequency

415

2.5 m (3 m with electric lock)

S3 - 30%

Not included

104415

415 L

3 m (4 m with electric lock)

S3 - 30%

Not included

104417

The pack includes: an electro-mechanical operator, installation accessories, a release key, a 400V 8μF thrust capacitor. thrust capaci

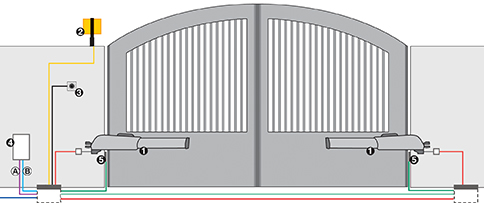

HƯỚNG DẪN LẮP ĐẶT



__logo__WireViolet__ __logo__A__ Low voltage cabling

__logo__WireBlack__ 3x0.50 mm2 cable

__logo__WireBlack__ 2x0.50 mm2 cable

__logo__WireCyan__ __logo__B__ Power cabling (230V)

__logo__WireRed__ 3x1.5 mm2 +T cable

__logo__WireRed__ 2x1.5 mm2 +T cable

__logo__WireRed__ 2x1.5 mm2 cable



Ref

Q.ty

Description

Item code

1

2

415 Operator

104415

2

1

FAACLIGHT 230V flashing light

410013

3

1

Key operated button T10 E

401019001-36

4

1

E045 Electronic equipment

790005

4

1

Enclosure Mod.E for electronic control boards

720119

4

1

XF 433 MHz receiver

319006

5

1

XP 15 B pair of photocells

785149

__

1

XT2 433 SLH LR 2-channel transmitter

787007



This solution can also be found in the kit:

MASTER 230V kit

PHỤ KIỆN VÀ LINH KIỆN

Electronic control boards

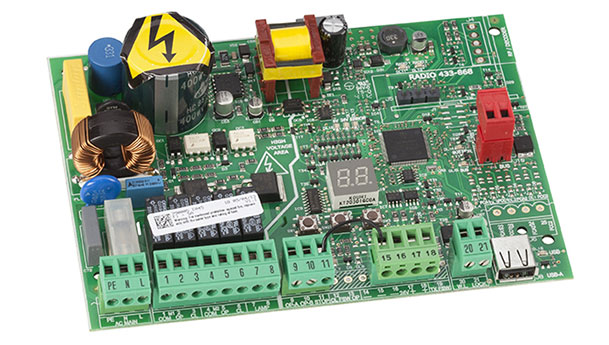

E045 electronic control board Thông tin chi tiết

Item code: 790005

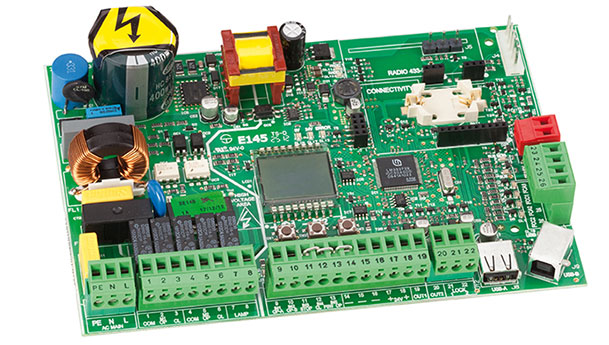

E145 electronic control board Thông tin chi tiết

Item code: 790006

Accessories

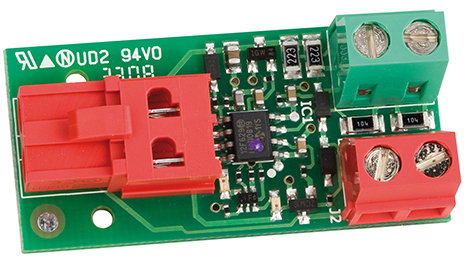

BUS XIB interface If using board E045 or E024S with photocell no BUS)

Item code: 790062

XK21 L 24V Anti-burglar key selector with lever release

Item code: 401301

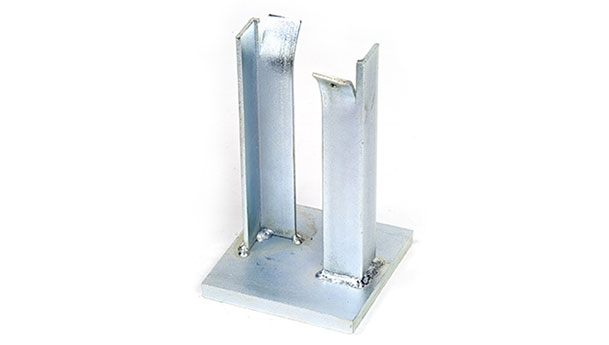

Plate to be walled

Item code: 737604

Enclosure mod. L for electronic control boards

Item code: 720118

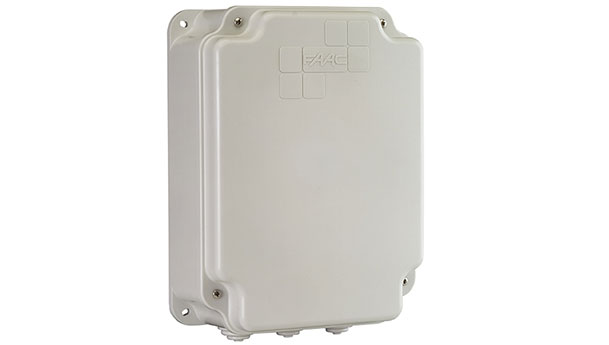

Enclosure mod. E for electronic control boards

Item code: 720119

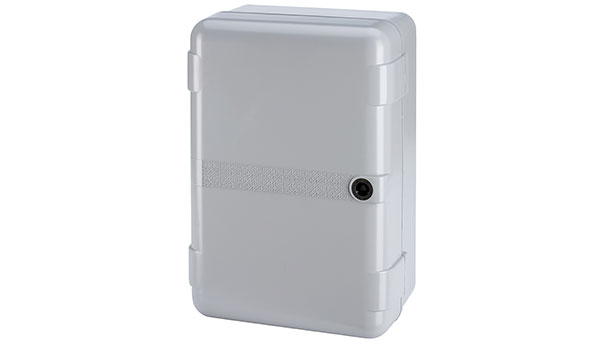

Enclosure mod. LM for electronic control boards

Item code: 720309

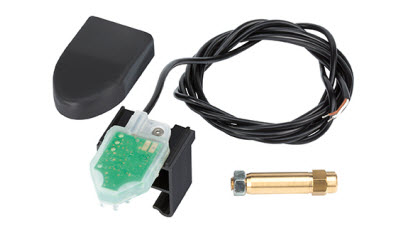

SAFEcoder BUS magnetic absolute encoder (FAAC patent)

Item code: 404040

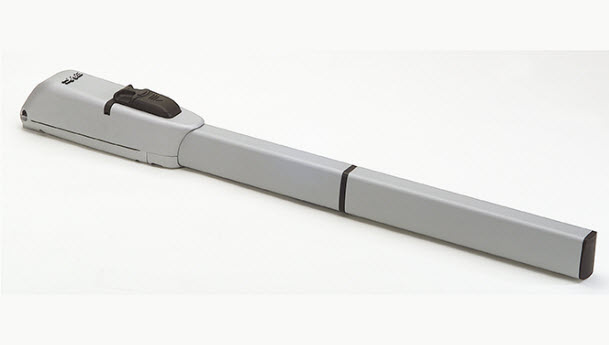

Rod cover for mod. 415 (rod travel 300 mm)
