412

Max width single leaf

1.8 m

Use frequency (cycles/hour)

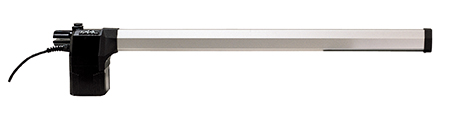

Bộ vận hành 412

This product can become SAFE &GREEN with appropriate accessories

Model	412 dx 412 sx
Power Supply Voltage	230V~ 50 Hz
Electric motor	Asynchronous single phase
Max Power	280 W
Max push force	3500 N
null	16 mm/s
null	290 mm
Max leaf opening angle	110°
Operating ambient temperature	-20 °C ÷ +55 °C
Thermal protection	140°C
Protection class	IP44
Weight	6.5 Kg
Mounting brackets	Rear attachment to be welded/screwed - front attachment to be welded
Dimensions (WxDxH)	1000 x 90 x 195 mm

Model	Use	Equipment electronic	Item code
412 dx	1.8 m	18	Not included	104470
412 sx	1.8 m	18	Not included	104471

Model

Use

Equipment

electronic

Item code

Max width

single leaf

Frequency

of use (cycles/day)

412 dx

1.8 m

Not included

104470

412 sx

1.8 m

Not included

104471

The pack includes: an electromechanical operator (RH or LH), installation accessories, a release key, a 400V 8μF thrust capacitor.

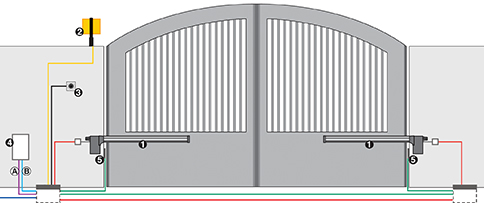

__logo__WireViolet__ __logo__A__ Low voltage cabling

__logo__WireBlack__ 3x0.50 mm² cable

__logo__WireGreen__ 2x0.50 mm² cable

__logo__WireCyan__ __logo__B__ Power cabling (230V)

__logo__WireRed__ 3x1.5 mm² +T cable

__logo__WireBlue__ 2x1.5 mm² +T cable

__logo__WireYellow__ 2x1.5 mm² +T cable

Ref	Q.ty	Description	Item code
1	1	412 right operator	104470
1	1	412 left operator	104471
2	1	FAACLIGHT 230V flashing light	410013
3	1	Key operated button T10 E	401019001-36
4	1	E045 electronic control board	790005
4	1	Enclosure mod. E for electronic control boards	720119
4	1	XF 433 MHz receiver	319006
5	1	XP 15 B pair of photocells	785149
__	1	XT2 433 SLH LR 2-channel transmitter	787007
