844 E R

Max weight

1,800 Kg

Speed

9.5 - 12 m/min.

Use frequency

70 - 78%

Bộ điều khiển 844 ER

  • Commercial and industrial applications
  • Anti-crushing safety device
  • As the gearmotor is irreversible, no electric locks need to be installed
  • In the event of power failure, the key protected release device makes it possible to open and close the gate manually
  • Twin-disk clutch in oil bath
  • Inductive or magnetic limit switch (according to model).
This product can become SAFE &GREEN with appropriate accessories

Có thể bạn quan tâm: C850   884 MC 3PH   C721

THÔNG SỐ KỸ THUẬT

Model
844 E R Z16
844 R
Power Supply Voltage 230V~ 50 Hz
Electric motor Single phase
Max Power 660 W
Max Torque 37 Nm
Max push force
1,160 N
1,160 N (Z16) - 930 N (Z20)
Reduction ratio 1:30
Max leaf width
40 m
40 m (Z16) 50 m (Z20)
Speed adjustment and motor control No
Limit switch Magnetic
Pinion
Z16 module 4
No
Encoder Magnetic encoder
Force adjustment Twin-disk clutch in oil bath and via board
Operating ambient temperature -20 °C ÷ +55 °C
Thermal protection 120 °C
Protection class IP44
Weight 14.5 Kg
Type of oil FAAC HP OIL
Dimensions (WxDxH) 275 x 191 x 387 mm

MÔ HÌNH

Model

Use

Electronic

equipment

Item code

Max

weight

Speed

Use frequency

844 E R Z16

1,800 Kg

9.5 m/min

70%

780D incorporated

109837

844 R

-

9.5 m/min (Z16) - 12 m/min (Z20)

78%

Not included

109838

Pack 844 E R Z16 , designed for rack applications, includes: a gearmotor with pinion and electronic control board 780D, limit switch magnets, release key and protective covers.

Pack 844 R , designed for rack applications, includes: a gearmotor without pinion and without electronic control board, limit switch magnets, release key and protective covers.

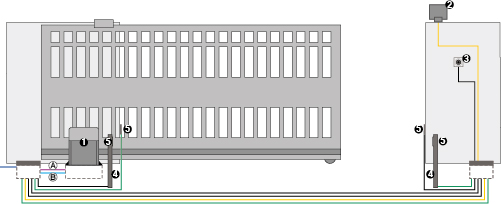

HƯỚNG DẪN LẮP ĐẶT



__logo__WireViolet__ __logo__A__ Low voltage cabling

__logo__WireBlack__ 3x0.50 mm2 cable

__logo__WireGreen__ 2x0.50 mm2 cable

__logo__WireCyan__ __logo__B__ Power cabling (230V)

__logo__WireBlue__ 2x1.5 mm2 +T cable

__logo__WireYellow_ 2x1.5 mm2 cable



Ref

Qty

Description

Item code

1

1

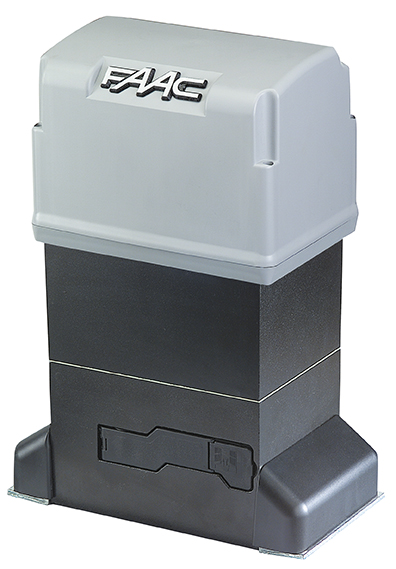

844 E R Z16 Gearmotor

109837

1

1

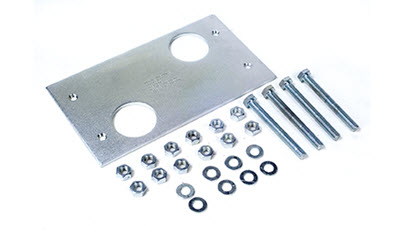

Foundation plate with lateral and height adjustments

737816

1

1

Galvanised rack 30x12 mod. 4 with attachments to weld included/p>

490122

1

1

Plug in receiver 1 channel RP 433 SLH

787824

2

1

FAACLIGHT 230V flashing light

410013

3

1

Key operated button T10

401010001-36

3

1

Plastic enclosure to be walled in

720086

4

2

Low aluminium column

401028

4

2

Foundation plate for aluminium column

737630

5

1

PHOTOSWITCH pair of photocells

785152

__

1

XT2 433 SLH LR 2-channel transmitter

787007

PHỤ KIỆN VÀ LINH KIỆN

Electronic control boards

E145 electronic control board Thông tin chi tiết

Item code: 790006

Electronic equipment 578D (remote installation) Thông tin chi tiết

Item code: 790922

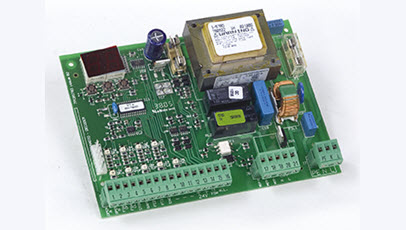

780D electronic control board (incorporated in automation) Thông tin chi tiết

Item code: 7909212

Accessories

Enclosure mod. L for electronic control boards

Item code: 720118

Enclosure mod. E for electronic control boards

Item code: 720119

Enclosure mod. LM for electronic control boards

Item code: 720309

Lower guide wheel with pin V groove Ø 120 mm

Item code: 739301

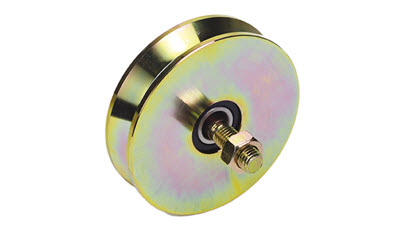

Lower guide wheel with pin V groove Ø 250 mm

Item code: 739308

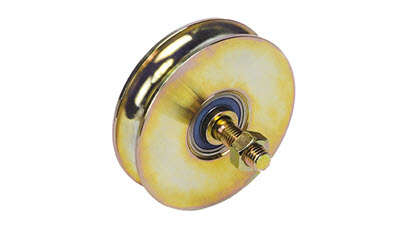

Lower guide wheel with pin rounded groove Ø 160 mm

Item code: 739306

Lower guide wheel with pin rounded groove Ø 200 mm

Item code: 739307

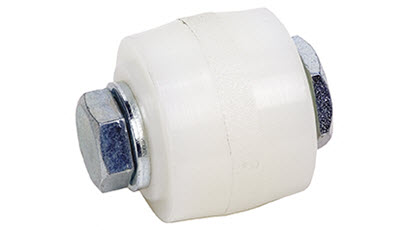

Lower guide wheel with pin

Item code: 739310

Foundation plate with lateral and height adjustments (6 pc. pack)

Item code: 737816

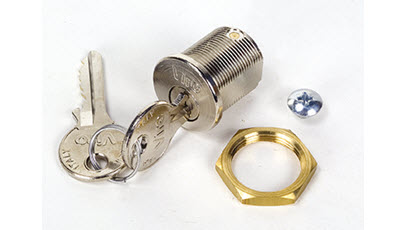

Release lock with customised key

Item code: 71275101-36

Rack

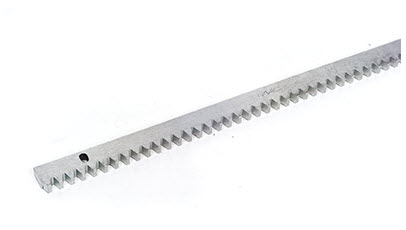

Galvanised rack 30x12 mod. 4 with attachments to weld included (packs of 4 m)

Item code: 490122

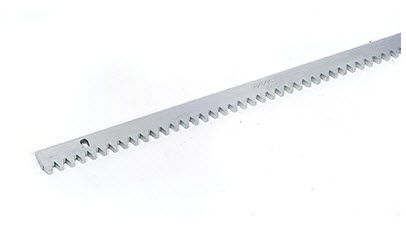

Galvanised rack 30x8 mod. 4 with attachments to weld included (packs of 4 m)

Item code: 490123

Galvanised rack 30x12 mod. 4 with mechanical fixing attachments included (packs of 4 m)

Item code: 490124

Galvanised rack 30x8 mod. 4 with mechanical fixing attachments included (packs of 4 m)

Item code: 490125

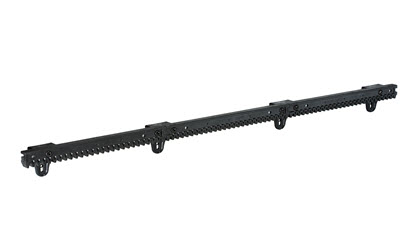

Nylon rack with steel reinforcement 30x20 and relevant installation accessories (4m package) (packs

Item code: 4901204

Pinions

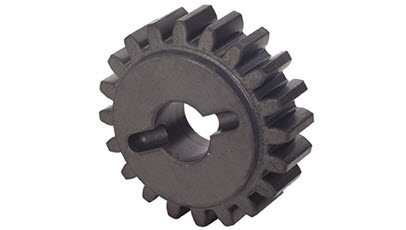

Pinion Z20 for rack

Item code: 719167

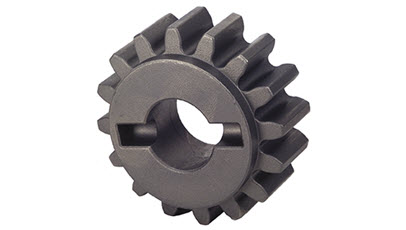

Pinion Z16 for rack

Item code: 719130

Spares

If you are interested in a spare part, go to the spare parts area. ATTENTION: (The area will not be

Item code:
