C850
Max. leaf weight
1,800 Kg
Speed
20 ÷ 42 m/min
Bộ điều khiển C850
- For industrial sliding gates with weight up to 1800 Kg, with speed (adjustable) up to 0.7 m/s and maximum recommended length of 20 m
- Ideal for special applications that require rapid operation and continual service (100%) such as prisons, embassies, sensitive locations.
- Irreversibility guaranteed by integrated electric brake on the powerful 1.1KW gearmotor
- Speed programming via integrated frequency inverter
- Incorporated electronic equipment protected by metal enclosure and transparent plastic cover.
- Micro switches that initiate deceleration and limit switch integrated in the gearmotor and adjustable (does not require detection by the gate)
- Steel cover with protective zinc primer treatment and polyester dust painting
- Manual release device operated from the outside by an operator with coded key
Có thể bạn quan tâm: 884 MC 3PH 844 E R C721
THÔNG SỐ KỸ THUẬT
| Model | C850 |
| Power Supply Voltage | 230V~ 50 Hz |
| Electric motor | WThree phase with four poles |
| Type of gearmotor | 1.1 KW with oil lubrication |
| Max Power | 1,800 W |
| Inverter max power | 1,500 W |
| Max Torque | 110 Nm |
| Max push force | 1,800 N |
| Max leaf width | 20 m |
| Speed adjustment and motor control | Via inverter |
| Limit switch | 4 integrated mechanics |
| Pinion | Z28 module 4 |
| Encoder | No |
| Operating ambient temperature | -20 °C ÷ +55 °C |
| Thermal protection | 155 °C |
| Protection class | IP54 |
| Weight | 49 Kg |
| Dimensions (WxDxH) | 510 x 295 x 467 mm |
MÔ HÌNH
|
Model |
Use |
Equipment electronic |
Item code |
||
|---|---|---|---|---|---|
|
Max leaf weight |
Use Speed |
Use frequency |
|||
|
C850 |
1,800 Kg |
20 ÷ 42 m/min |
100% |
Incorporated E850 |
109819 |
The pack includes: a gearmotor designed for on-rack application with pinion Z28, with E850 electronic equipment, inverters and limit switches incorporated.

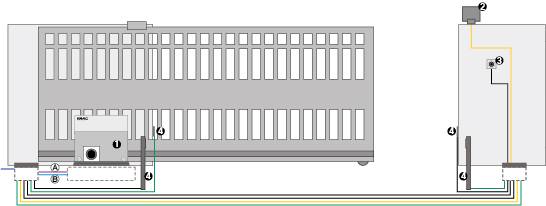

HƯỚNG DẪN LẮP ĐẶT
Low voltage cabling
3x0.50 mm2 cable
2x0.50 mm2 cable
Power cabling (230V)
2x1.5 mm2 +T cable
2x1.5 mm2 cable
|
Ref |
Qty |
Description |
Item code |
|---|---|---|---|
|
1 |
1 |

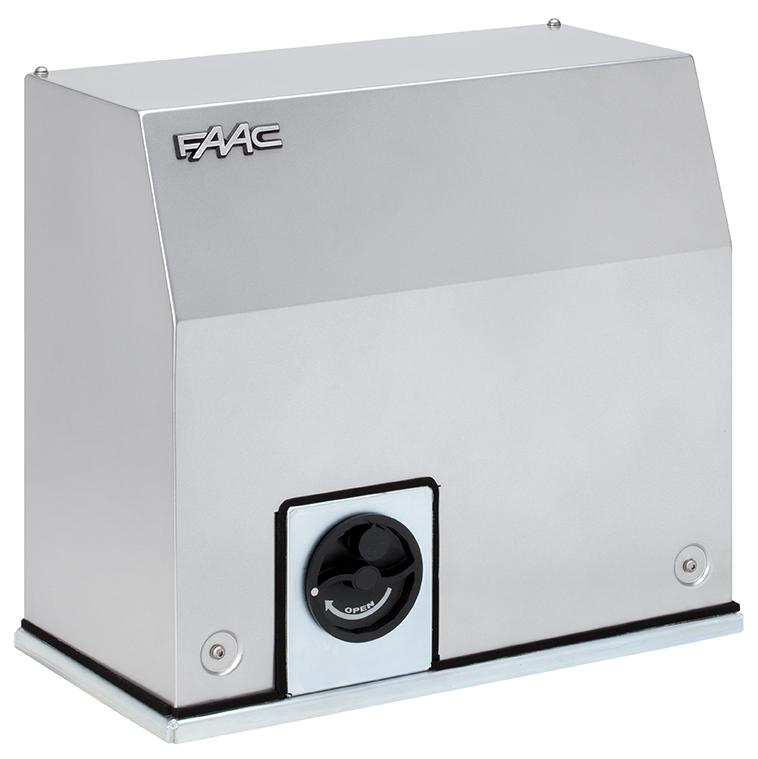

C850 Gearmotor |
109819 |
|
1 |
1 |
C850 Foundation plate |
737850 |
|
1 |
4 |
Galvanised rack 30x12 mod. 4 with attachments to weld included (pack of 4 m) |
490122 |
|
1 |
1 |
Plug in receiver 1 channel RP 433 SLH |
787824 |
|
2 |
1 |
FAACLIGHT 230V flashing light |
410013 |
|
3 |
1 |
Key operated button T10 E |
401019001-36 |
|
4 |
2 |
PHOTOBEAM pair of photocells |
785163 |
|
4 |
1 |
Low aluminium column 2 pc. pack) |
401028 |
|
4 |
2 |
Foundation plate for aluminium column (T10 - T11 - T10 E - T11 E) (10 pc. pack) |
737630 |
|
__ |
1 |
XT2 433 SLH LR 2-channel transmitter |
787007 |
PHỤ KIỆN VÀ LINH KIỆN
Electronic control boards

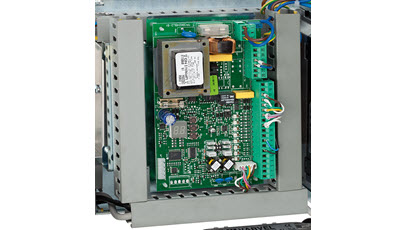

E850 Electronic equipment
Thông tin chi tiết
Item code:
Accessories

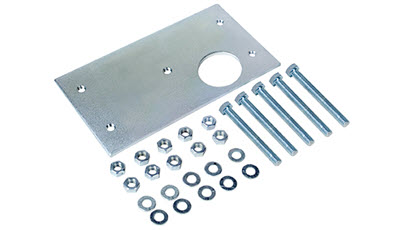

C850 Foundation plate
Item code: 737850

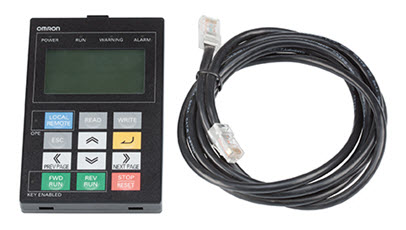

OMRON Inverter Remote Keypad C850
Item code: 404036
Lower guide wheel with supports V groove Ø 100 mm
Item code: 739304
Lower guide wheel with pin V groove Ø 120 mm
Item code: 739301
Lower guide wheel with pin V groove Ø 160 mm
Item code: 739302
Lower guide wheel with pin V groove Ø 200 mm
Item code: 739303
Lower guide wheel with pin V groove Ø 250 mm
Item code: 739308
Lower guide wheel with pin rounded groove Ø 160 mm
Item code: 739306
Lower guide wheel with pin rounded groove Ø 200 mm
Item code: 739307
Lower guide wheel with pin
Item code: 739310
Rack

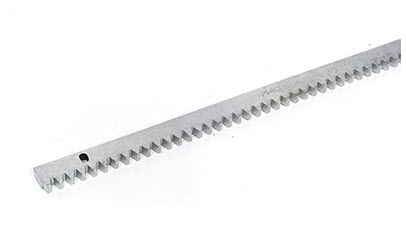

Galvanised rack 30x12 mod. 4 with attachments to weld included (packs of 4 m)
Item code: 490122
Pinions
Pinion Z16 module 6 with protection for rack
Item code: 719169
Spares
If you are interested in a spare part, go to the spare parts area. ATTENTION: (The area will not be
Item code:
