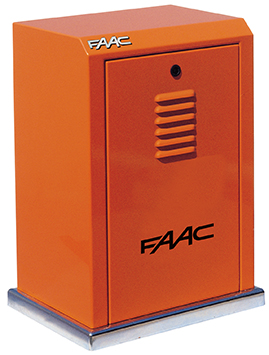

884 MC 3PH

Max weight

3,500 Kg

Use frequency

50 - 100%

Bộ điều khiển 844 MC 3PH

  •  Industrial applications for very heavy gates with intensive use
  •  Fail-safe braking device with reduced stopping space and gate closing hold to avoid the installation of electric locking
  • Lever release device with key to open and close the gate manually in the event of a power failure
  • Twin-disk clutch in oil bath
  • Base with levelling screws
  • Cataphoresis treated and polyester painted steel cabinet .

Có thể bạn quan tâm: C850   844 E R   C721

THÔNG SỐ KỸ THUẬT

Model 884 MC 3PH
Power Supply Voltage 400V~ 3PH 50 Hz
Electric motor Three phase with four poles
Max Power 850 W
Max Torque 0 ÷ 155 Nm
Max push force 3,200 N
Reduction ratio 1:43,2
Max leaf width 42 m
Speed adjustment and motor control No
Limit switch Roller lever micro switch
Pinion No
Encoder No
Force adjustment Twin-disk clutch in oil bath
Operating ambient temperature -20 °C ÷ +55 °C
Thermal protection 155 °C
Protection class IP55
Weight 50 Kg
Type of oil FAAC HP OIL
Dimensions (WxDxH) 430 x 310 x 586 mm

MÔ HÌNH

Model

Use

Electronic

Equipment

Item code

Max. leaf

weight

Use

frequency

884 MC 3PH

3,500 Kg

100% (up to 2,000 Kg)
50% (over 2,000 Kg)

884T incorporated

109885

The pack includes: a gearmotor designed for on-rack application without pinion and with 884T electronic equipment, limit switch metal sheets, release key.

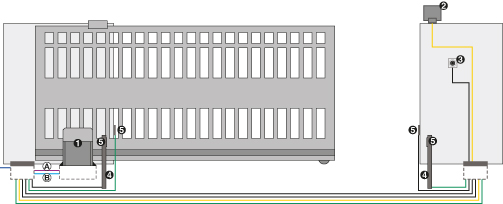

HƯỚNG DẪN LẮP ĐẶT



__logo__WireViolet__ __logo__A__ Low voltage cabling

__logo__WireBlack__ 3x0.50 mm2 cable

__logo__WireGreen__ 2x0.50 mm2 cable

__logo__WireCyan__ __logo__B__ Power cabling (230V)

__logo__WireBlue__ 2x1.5 mm2 +T cable

__logo__WireYellow_ 2x1.5 mm2 cable



Ref

Qty

Description

Item code

1

1

844 MC 3PH Gearmotor

109885

1

1

Foundation plate

737628

1

1

Pinion Z16 module 6/p>

719169

1

4

Angle bracket pack for rack fixture

722123

1

1

Plug in receiver 1 channel RP 433 SLH

787824

2

1

FAACLIGHT 230V flashing light

410013

3

1

Key operated button T10

401010001-36

3

1

Plastic enclosure to be walled in

720086

4

2

Low aluminium column

401028

4

2

Foundation plate for aluminium column

737630

5

1

PHOTOSWITCH pair of photocells

785152

__

1

XT2 433 SLH LR 2-channel transmitter

787007

PHỤ KIỆN VÀ LINH KIỆN

Electronic control boards

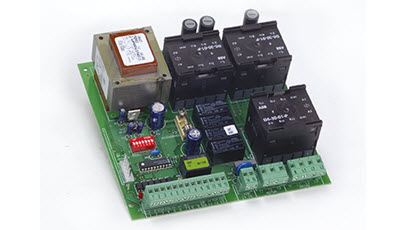

884 T electronic control board (incorporated in the automation) Thông tin chi tiết

Item code:

Accessories

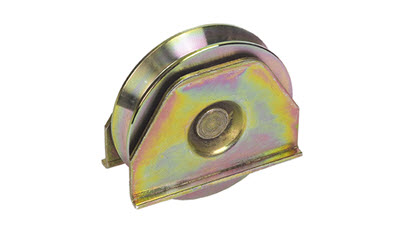

Lower guide wheel with supports V groove Ø 100 mm

Item code: 739304

Lower guide wheel with pin V groove Ø 120 mm

Item code: 739301

Lower guide wheel with pin V groove Ø 160 mm

Item code: 739302

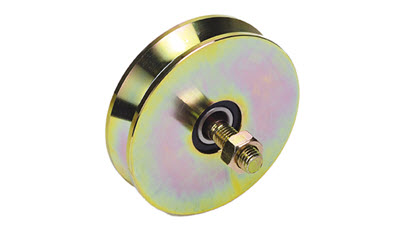

Lower guide wheel with pin V groove Ø 200 mm

Item code: 739303

Lower guide wheel with pin V groove Ø 250 mm

Item code: 739308

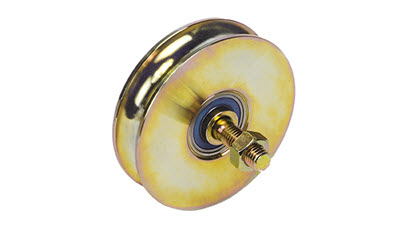

Lower guide wheel with pin rounded groove Ø 160 mm

Item code: 739306

Lower guide wheel with pin rounded groove Ø 200 mm

Item code: 739307

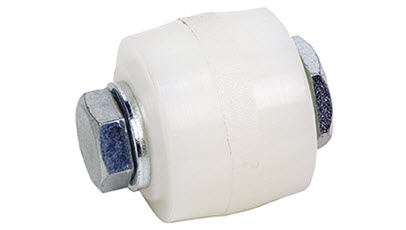

Lower guide wheel with pin

Item code: 739310

Foundation plate (6 pc. pack)

Item code: 737628

Lower guide wheel with pin V groove Ø 250 mm

Item code: 739305

Rack

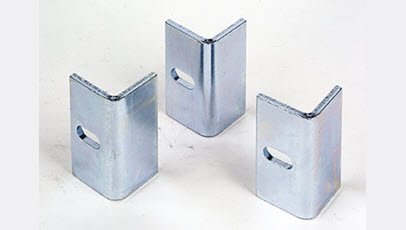

Angle fixing bracket pack rack (3 pc)

Item code: 722123

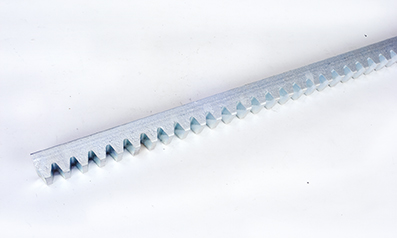

Galvanised rack 30x30 module 6 (length 1 m)

Item code: 719328

Pinions

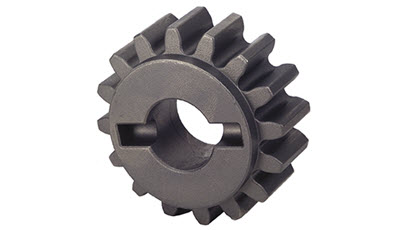

Pinion Z16 module 6 with protection for rack

Item code: 719169

Spares

If you are interested in a spare part, go to the spare parts area. ATTENTION: (The area will not be

Item code:
