S418

Max width single leaf

2.5 - 2.7 m

Use frequency (cycles/hour)

Continuous use

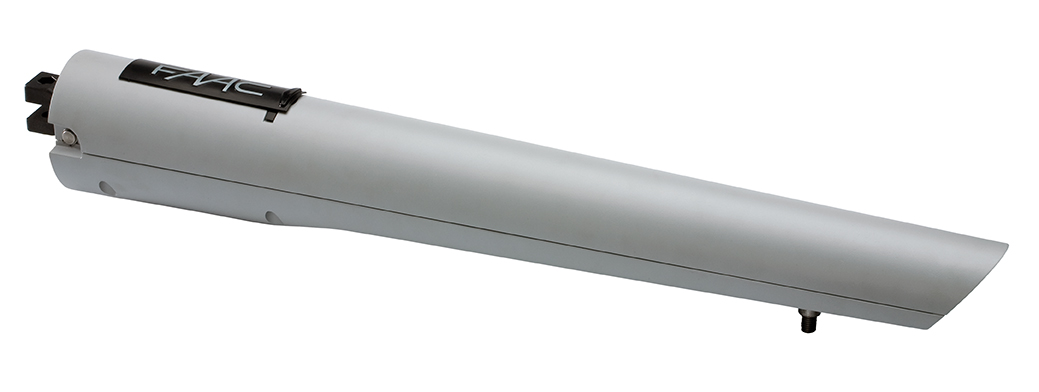

Bộ vận hành S418

''Out of axis'' thrust operator
Integrated opening and closing mechanical stops (no need to install limit switch mechanical stops).
Useful stroke 350 mm
New 'multi-position' mounting bracket with no welding required
Fully painted die-cast aluminium body

This product can become SAFE &GREEN with appropriate accessories

Model	S418 24V
Power Supply Voltage	230V~ 50 Hz
Electric motor	With brushes 24V
Max Power	35 W
Max push force	1800 N
null	44 mm/s (with E124)
null	350 mm (390 mm without stops)
Max leaf opening angle	110°
Operating ambient temperature	-20 °C ÷ +55 °C
Protection class	IP54
Weight	6 Kg
Mounting brackets	Rear attachment to be screwed and adjustable - front attachment to be screwed and adjustable
Dimensions (WxDxH)	825 x 104 x 125 mm

Model	Use	Electronic equipment	Item code
S418 24V	2.3 m (2.7 m with electric lock)	Continuous use	Not included	104301

Model

Use

Electronic equipment

Item code

Max width

single leaf

Use frequency

S418 24V

2.3 m (2.7 m with electric lock)

Continuous use

Not included

104301

The pack includes: an electromechanical operator, accessories for installation, a release key.

__logo__WireViolet__ __logo__A__ Low voltage cabling

__logo__WireBlack__ 3x0.50 mm² cable

__logo__WireGreen__ 2x0.50 mm² cable

__logo__WireGreen__ 2x1.50 mm² cable

__logo__WireGreen__ 2x2.50 mm² cable

__logo__WireCyan__ __logo__B__ Power cabling (230V)

__logo__WireRed__ 2x1.5 mm² +T cable

Ref	Q.ty	Description	Item code
1	2	24V S418 Actuators	104301
2	1	FAACLIGHT 24V flashing light	410014
3	1	Key operated button T10 E	401019001-36
4	1	E024S Electronic equipment with enclosure	790286
4	1	XF 433 MHz receiver	319006
5	1	XP 15 B pair of photocells	785149
__	1	XT2 433 SLH LR 2-channel transmitter	787007
