415 24V

Max width single leaf

2.5 - 4 m

Use frequency

Continuous use

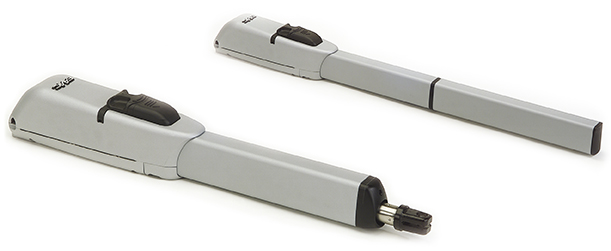

Bộ vận hành 415 - 24V

  • In axis'' thrust operator
  • Versions with rod travel of 300 mm (max 3 m leaf) and 400 mm (max 4 m leaf) available
  • Die-cast aluminium body, entirely double-coat painted for longer duration
  • Manual release device with simplified key-protected activation
  • Horizontal cable outlet to allow installation near the ground (low installation)
  • Emergency battery for operation in case of a power cut (optional)
This product can become SAFE &GREEN with appropriate accessories

Có thể bạn quan tâm: 400   422   S450

THÔNG SỐ KỸ THUẬT

Model
415 24V
415 L 24V
Power Supply Voltage 230V~ 50 Hz
Electric motor With brushes 24V __logo__DC__
Max Power 70 W
Max push force 2800 N
null 16 mm/s
null
300 mm
400 mm
Max leaf opening angle 110°
Operating ambient temperature -20 °C ÷ +55 °C
Protection class IP54
Weight
7.8 Kg
8 Kg
Mounting brackets Rear attachment to be welded/screwed - front attachment to be welded
Dimensions (WxDxH)
835 x 105 x 148 mm
940 x 105 x 148 mm

MÔ HÌNH

Model

Use

Electronic equipment

Item code

Max width

single leaf

Use frequency

415 24V

2.5 m (3 m with electric lock)

continuous use

Not included

1044151

415 L 24V

3 m (4 m with electric lock)

continuous use

Not included

1044171

The pack includes: an electro-mechanical operator, installation accessories, a release key, a 400V 8μF thrust capacitor. thrust capaci

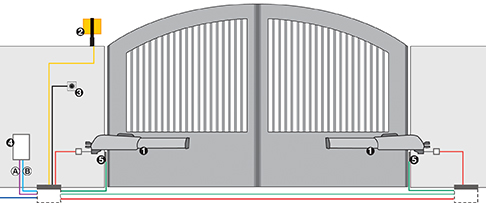

HƯỚNG DẪN LẮP ĐẶT



__logo__WireViolet__ __logo__A__ Low voltage cabling

__logo__WireBlack__ 3x0.50 mm2 cable

__logo__WireBlack__ 2x0.50 mm2 cable

__logo__WireBlack__ 2x1.5 mm2 cable

__logo__WireBlack__ 2x2.50 mm2 +T cable

__logo__WireCyan__ __logo__B__ Power cabling (230V)

__logo__WireRed__ 2x1.5 mm2 +T cable



Ref

Q.ty

Description/p>

Item code

1

2

415 Operator

1044151

2

1

FAACLIGHT 24V flashing light

410014

3

1

Key operated button T10 E

401019001-36

4

1

E024S Electronic equipment with enclosure

790286

4

1

XF 433 MHz receiver

319006

5

1

XP 15 B pair of photocells

785149

__

1

XT2 433 SLH LR 2-channel transmitter

787007



This solution can also be found in the kit:

MASTER 24V kit

PHỤ KIỆN VÀ LINH KIỆN

Electronic control boards

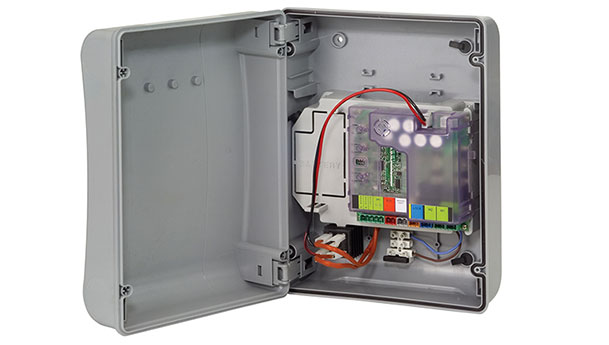

E024S Electronic equipment with enclosure included in 391 E Thông tin chi tiết

Item code: 790286

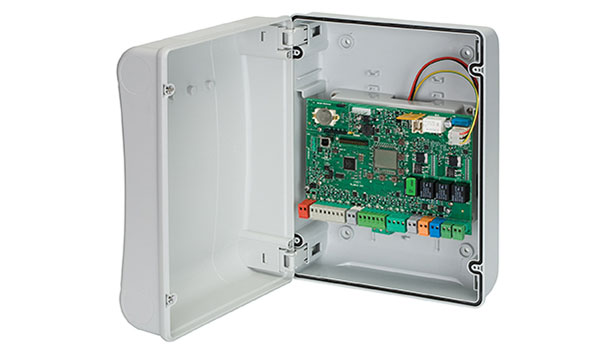

E124 Electronic equipment with enclosure Thông tin chi tiết

Item code: 790284

Accessories

BUS XIB interface If using board E045 or E024S with photocell no BUS)

Item code: 790062

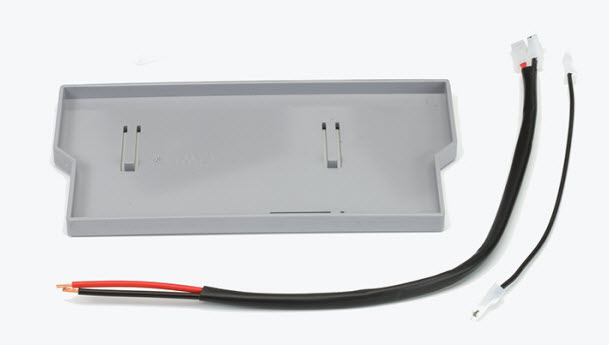

Battery support kit emergency (specific for E124)

Item code: 390926

XK21 L 24V Anti-burglar key selector with lever release

Item code: 401301

XBAT 24 emergency battery kit (not compatible with E124)

Item code: 390923

Plate to be walled

Item code: 737604

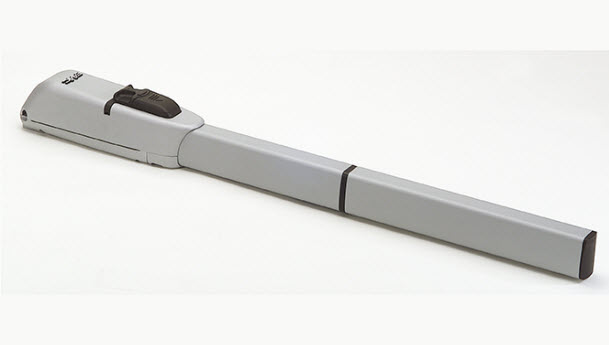

Rod cover for mod. 415 (rod travel 300 mm)

Item code: 727525

Spares

If you are interested in a spare part, go to the spare parts area. ATTENTION: (The area will not be

Item code:
