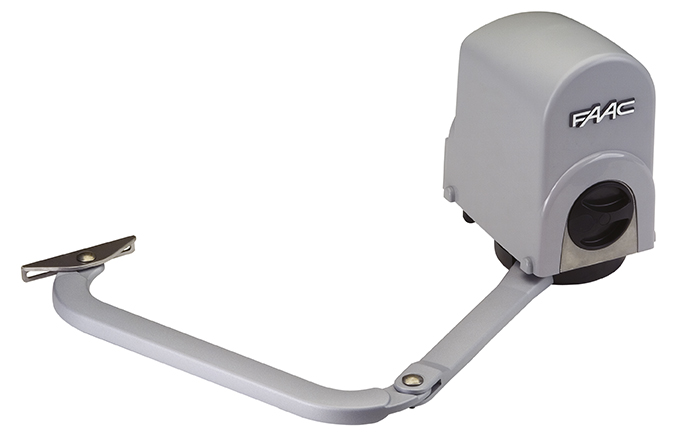

Bộ vận hành 391

Compact and elegant design. The width is only 185 mm!
Versatile and simple installation. The articulated arm allows for high flexibility in installation dimensions, enabling use even on large pillars.
The non-reversing operator prevents the need to install electromechanical closing devices up to 2 m.
In case of a power failure, the rotation of the (key protected) release device alone allows you to move the gate manually.
Integrated mechanical stops prevents the need to install opening and closing mechanical stops.
Emergency battery to ensure operation in case of power failure (optional).

This product can become SAFE &GREEN with appropriate accessories

Model	391 E 391
Power Supply Voltage	230V~ 50 Hz
Electric motor	With brushes 24V
Max Power	120 W 40 W
Max Torque	250 Nm
Max angular speed	13 °/s
Max. leaf weight	See graphic A
Max leaf opening angle	120°
Operating ambient temperature	-20 °C ÷ +55 °C
Protection class	IP44
Weight	8.7 Kg
Dimensions (WxDxH)	185 x 260 x 310 mm

Model	Use	Equipment electronic	Item code
391 E	2 m (2.5 with electric lock)	80	Incorporated E024S	104576
391	2 m (2.5 with electric lock)	80	Not included	104577

Model

Use

Equipment

electronic

Item code

Max width

single leaf

Frequency

of use (cycles/day)

391 E

2 m (2.5 with electric lock)

Incorporated E024S

104576

391

2 m (2.5 with electric lock)

Not included

104577

Pack 391 E includes: an electromechanical operator with built-in electronic control board and transformer, an articulated arm, a release key.

Pack 391 includes: an electromechanical operator, an articulated arm, a release key.

Graphic A

__logo__WireViolet__ __logo__A__ Low voltage cabling

__logo__WireBlack__ 3x0.50 mm² cable

__logo__WireGreen__ 2x0.50 mm² cable

__logo__WireGreen__ 2x2.50 mm² cable

__logo__WireGreen__ 2x1.50 mm² cable

__logo__WireCyan__ __logo__B__ Power cabling (230V)

__logo__WireRed__ 2x1.5 mm² +T cable

Ref	Q.ty	Description	Item code
1	1	391 E Actuator with electronic control board and articulated arm	104576
1	1	391 Operator with articulated arm	104577
1	1	XF 433 MHz receiver	319006
2	1	FAACLIGHT 24V flashing light	410014
3	1	Key operated button T10 E	401019001-36
4	1	XP 15 B pair of photocells	785149
__	1	XT2 433 SLH LR 2-channel transmitter	787007
