C720

Max. leaf weight

400 Kg

Speed

18 m/min.

Use frequency

Continuous use

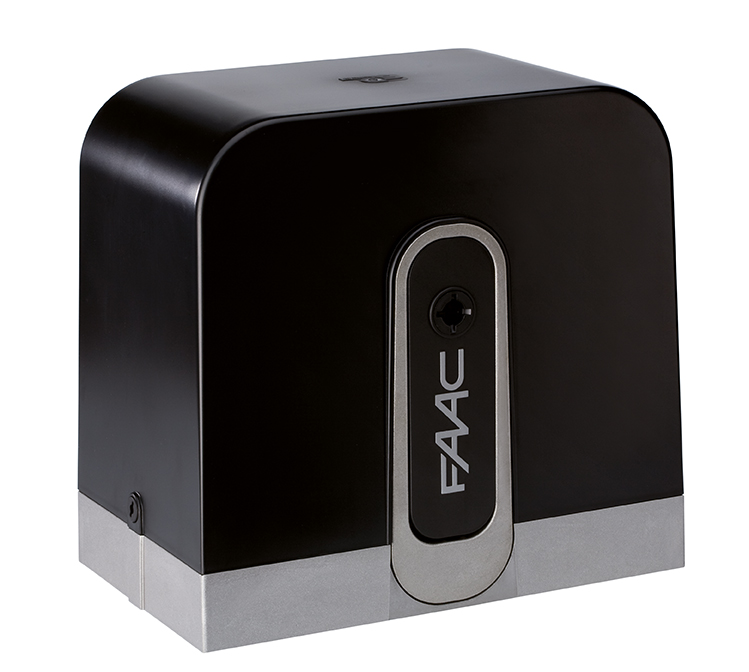

Bộ điều khiển C720

  • New mobile axis reduction principle. Patent FAAC
  • Exceptionally high mechanical performance >80% offering significant energy savings.
  • Electronic control board with anti-crushing safety device and electronic encoder with inversion function on obstacles.
  • Magnetic limit switches.
  • Master-Slave function to control 2 opposing leafs with E721 board.
This product can become SAFE &GREEN with appropriate accessories

Có thể bạn quan tâm: C850   884 MC 3PH   844 E R

THÔNG SỐ KỸ THUẬT

Model C720 24V
Power Supply Voltage faac_c720_24v_td_power_supply230V~ 60 Hz
Electric motor Brush motor 24V
Max Power 170 W
Max Torque 18 Nm
Max push force 320 N
Reduction ratio 1:49
Max leaf width 15 m
Speed adjustment and motor control Yes - electronic adjustment
Limit switch Magnetic
Pinion Z28 module 4
Encoder Electronic encoder
Force adjustment Via electronic control board
Operating ambient temperature -20 °C ÷ +55 °C
Protection class IP44
Weight 8 Kg
Dimensions (WxDxH) 300 x 180 x 280 mm

MÔ HÌNH

Model

Use Leaf

Electronic

equipment

Item code

Max

weight

Speed

Use frequency

C720 24V

400 Kg

18 m/min

Continuous use

Incorporated E721

109320

The packs include: a low voltage electromechanical operator with E721 electronic equipment, pinion for rack, a release key and foundation plate.

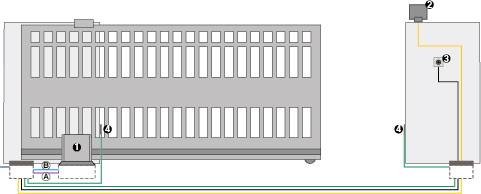

HƯỚNG DẪN LẮP ĐẶT



__logo__WireViolet__ __logo__A__ Low voltage cabling

__logo__WireBlack__ 3x0.50 mm2 cable

__logo__WireGreen__ 2x0.50 mm2 cable

__logo__WireYellow__ 2x1.50 mm2 cable

__logo__WireCyan__ __logo__B__ Power cabling (230V)

__logo__WireBlue__ 2x1.5 mm2 +T cable



Ref

Q.ty

Description

Item code

1

1

C720 Gearmotor with incorporated electronic equipment and foundation plate

109320

1

1

Galvanised rack 30x8 mod. 4 with attachments to weld included (pack of 4 m)

490123

1

1

XF 433 MHz receiver

319006

2

1

FAACLIGHT 24V flashing light

410014

3

1

Key operated button T10 E

401019001-36

4

1

XP 15 B pair of photocells

785149

__

1

XT2 433 SLH LR 2-channel transmitter

787007



This solution can also be found in the kit:

CYCLO kit

PHỤ KIỆN VÀ LINH KIỆN

Electronic control boards

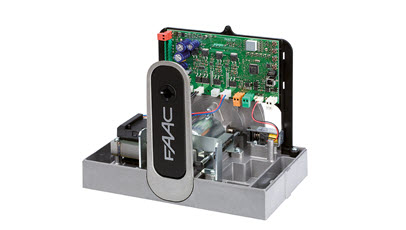

E721 electronic control board (incorporated in automation) compatible with C720 and C721 Thông tin chi tiết

Item code: 63002485

Accessories

XBAT 24 emergency battery kit (not compatible with E124)

Item code: 390923

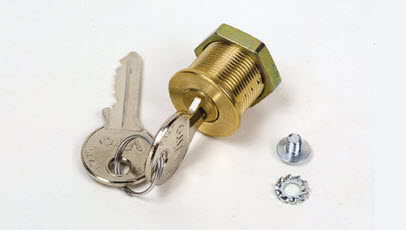

Release lock with customised key

Item code: 712501001-36

Lower guide wheel with supports V groove Ø 100 mm

Item code: 739304

Lower guide wheel with pin V groove Ø 120 mm

Item code: 739301

Lower guide wheel with pin V groove Ø 160 mm

Item code: 739302

Lower guide wheel with pin V groove Ø 200 mm

Item code: 739303

Lower guide wheel with pin V groove Ø 250 mm

Item code: 739308

Lower guide wheel with pin rounded groove Ø 160 mm

Item code: 739306

Lower guide wheel with pin rounded groove Ø 200 mm

Item code: 739307

Lower guide wheel with pin

Item code: 739310

Lower guide wheel with pin V groove Ø 250 mm

Item code: 739305

Customised release lock kit (10 pc. pack)

Item code: 424002

Spares

If you are interested in a spare part, go to the spare parts area. ATTENTION: (The area will not be

Item code:
