741

Max. leaf weight

900 Kg

Speed

12 m/min.

Use frequency

S3 - 40%

Bộ điều khiển 741

  • Quick and easy installation thanks to the built-in, pre-wired electronic equipment
  • As the gearmotor is irreversible, no electric locks need to be installed
  • In the event of power failure, the key protected rotating release device makes it possible to open Simplified ''display'' programming.
  • Magnetic limit switch.
  • Integrated encoder for reverse function on obstacles and accurate management of partial opening and slowdown

Có thể bạn quan tâm: C850   884 MC 3PH   844 E R

THÔNG SỐ KỸ THUẬT

Model 741 E Z16 with encoder
Power Supply Voltage 230V~ 50 Hz
Electric motor Single phase
Max Power 500 W
Max Torque 24 Nm
Max push force 650 N
Reduction ratio 1:25
Max leaf width 15 m
Speed adjustment and motor control No
Limit switch Magnetic
Pinion Z16 module 4
Encoder Optical encoder
Force adjustment Via electronic control board
Operating ambient temperature -20 °C ÷ +55 °C
Thermal protection 140 °C
Protection class IP44
Weight 11 Kg
Dimensions (WxDxH) 295 x 221 x 322 mm

MÔ HÌNH

Model

Use Leaf

Electronic

equipment

Item code

Max

weight

Speed

Use frequency

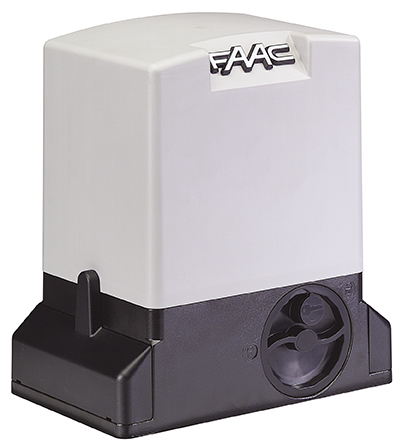

741 E Z16 with encoder

900 Kg

12 m/min

S3 - 40 %

740D incorporated

1097815

The packs include: an electromechanical gearmotor with 740D electronic equipment, encoder for anti-crushing safety device, pinion for rack, two release keys, foundation plate, limit switch magnets.

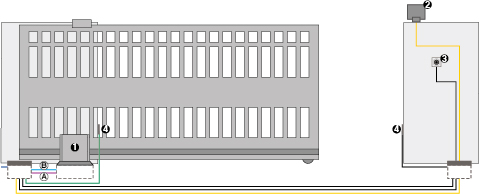

HƯỚNG DẪN LẮP ĐẶT



__logo__WireViolet__ __logo__A__ Low voltage cabling

__logo__WireBlack__ 3x0.50 mm2 cable

__logo__WireGreen__ 2x0.50 mm2 cable

__logo__WireCyan__ __logo__B__ Power cabling (230V)

__logo__WireBlue__ 2x1.5 mm2 +T cable

__logo__WireYellow__ 2x1.5 mm2 cable



Ref

Q.ty

Description

Item code

1

1

741 E Z16 gearmotor with incorporated electronic equipment, foundation plate and encoder

1097815

1

1

Galvanised rack 30x8 module with attachments to weld included (pack of 4)

490123

1

1

Plug in receiver 1 channel RP 433 SLH

787824

2

1

FAACLIGHT 230V flashing light

410013

3

1

Key operated button T10 E

401019001-36

4

1

SAFEBEAM pair of photocells

785165

__

1

XT2 433 SLH LR 2-channel transmitter

787007

PHỤ KIỆN VÀ LINH KIỆN

Electronic control boards

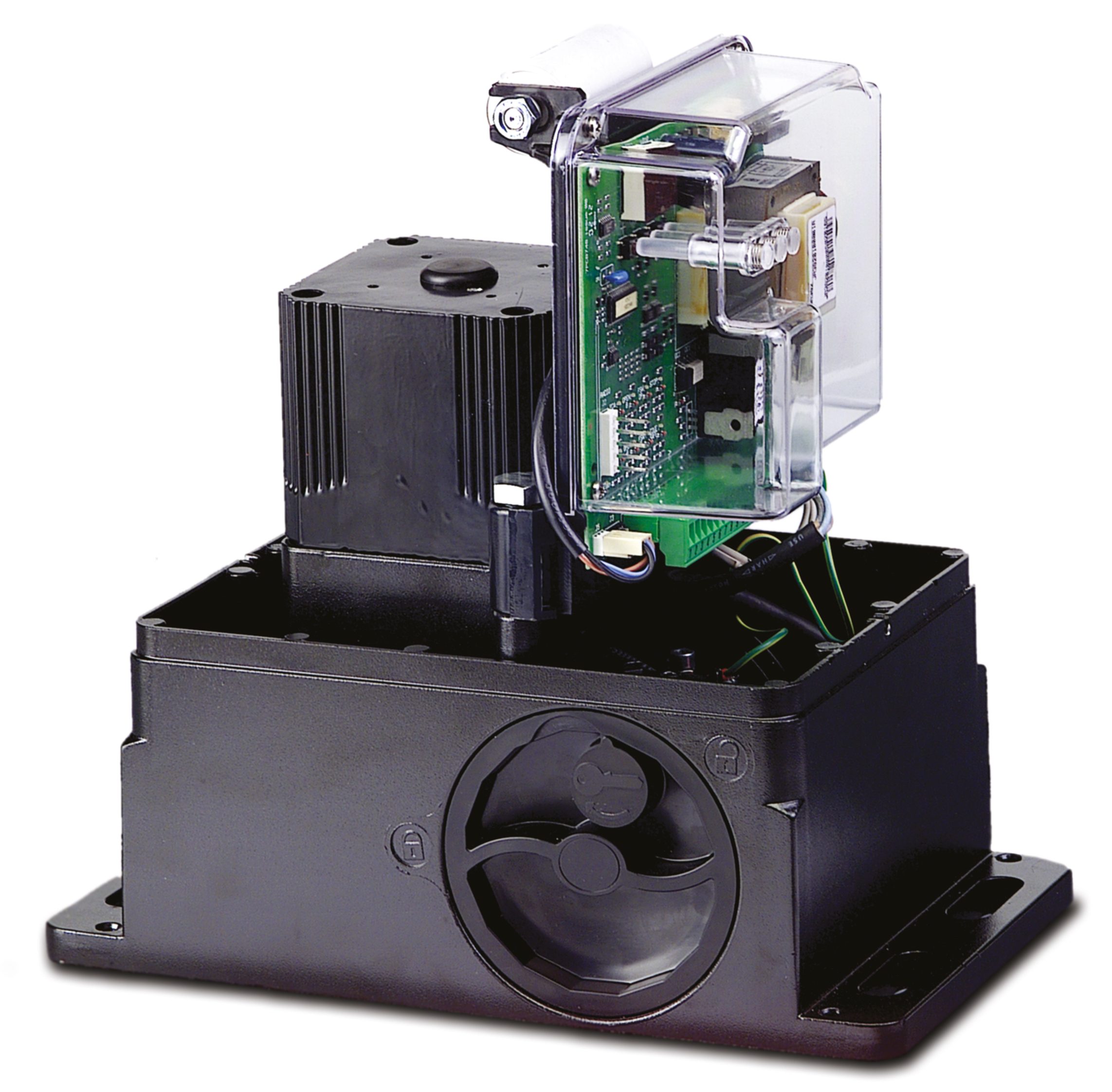

740D electronic control board (incorporated in automation) Thông tin chi tiết

Item code: 202269

Accessories

Lower guide wheel with supports V groove Ø 100 mm

Item code: 739304

Lower guide wheel with pin V groove Ø 120 mm

Item code: 739301

Lower guide wheel with pin V groove Ø 160 mm

Item code: 739302

Lower guide wheel with pin V groove Ø 200 mm

Item code: 739303

Lower guide wheel with pin V groove Ø 250 mm

Item code: 739308

Lower guide wheel with pin rounded groove Ø 160 mm

Item code: 739306

Lower guide wheel with pin rounded groove Ø 200 mm

Item code: 739307

Lower guide wheel with pin

Item code: 739310

Lower guide wheel with pin V groove Ø 250 mm

Item code: 739305

Rack

Galvanised rack 30x12 mod. 4 with attachments to weld included (packs of 4 m)

Item code: 490122

Galvanised rack 30x8 mod. 4 with attachments to weld included (packs of 4 m)

Item code: 490123

Galvanised rack 30x12 mod. 4 with mechanical fixing attachments included (packs of 4 m)

Item code: 490124

Galvanised rack 30x8 mod. 4 with mechanical fixing attachments included (packs of 4 m)

Item code: 490125

Nylon rack with steel reinforcement 30x20 and relevant installation accessories (4m package) (packs

Item code: 4901204

Spares

If you are interested in a spare part, go to the spare parts area. ATTENTION: (The area will not be

Item code:
