J275HA

Type of operator

Automatic

Height

600 - 800 mm

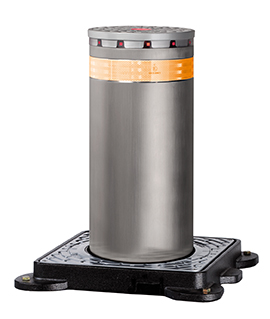

TRỤ CHẶN XE TỰ ĐỘNG J275HA

The Automatic retractable J275 HA traffic bollard is recommended when many transits are expected per day.

It can be activated with controls performed by authorised personnel or with automatic controls at preset times.

Guaranteed for high frequency use
Fast and silent movement
“Full optional” product; equipped with the main accessories
Extreme care in the selection of materials
Simplified maintenance (possible with just one person)
Perfect interchangeability with first generation bollards

Có thể bạn quan tâm: J355 M30-P1 F J355 M30-P1 HA J275F

THÔNG SỐ KỸ THUẬT

Model	J275 HA H600 J275 HA H600 Stainless steel J275 HA H800 J275 HA H800 Stainless steel
Type of operator	Hydraulic operator Hydraulic operator Hydraulic operator Hydraulic operator
Height of cylinder from ground	600 mm 600 mm 800 mm 800 mm
Cylinder diameter	275 mm 275 mm 275 mm 275 mm
Type of cylinder material	Steel S235JR EN 10219 (7mm thick) Satin-finished AISI 316L (6mm thick) Steel S235JR EN 10219 (7mm thick) Satin-finished AISI 316L (6mm thick)
Type of cylinder treatment	Cataphoresis and polyester powder paint, dark grey metallised RAL 7021 Satin finish Cataphoresis and polyester powder paint, dark grey metallised RAL 7021 Satin finish
Type of head material	Aluminium RAL 9006 Aluminium RAL 9006 Aluminium RAL 9006 Aluminium RAL 9006
Rise time	~5 s ~5 s ~7 s ~7 s
Descent time	~2.8 s ~2.8 s ~3.5 s ~3.5 s
Emergency descent device	YES (excludable) YES (excludable) YES (excludable) YES (excludable)
Emergency descent time	~1 s ~1 s ~1.2 s ~1.2 s
Obstacle detection device while rising	YES YES YES YES
Release device	YES YES YES YES
Power Supply Voltage	230V~ 50(60Hz) 230V~ 50(60Hz) 230V~ 50(60Hz) 230V~ 50(60Hz)
Max Power	220 W 220 W 220 W 220 W
Hydraulic unit protection class	IP67 IP67 IP67 IP67
Type of use	Intensive use (Traffic) Intensive use (Traffic) Intensive use (Traffic) Intensive use (Traffic)
Reflecting strip height	55 mm 55 mm 55 mm 55 mm
Standard reflecting strip colour	Orange Orange Orange Orange
Impact resistance	38000 J 67000 J 38000 J 67000 J
Break-in resistance	128000 J 207000 J 128000 J 207000 J
Overall weight	167 Kg 167 Kg 195 Kg 195 Kg
Pit weight	55 Kg 55 Kg 55 Kg 65 Kg
Bollard weight	112 Kg 112 Kg 130 Kg 130 Kg
Operating ambient temperature	-15°C / +55°C -15°C / +55°C -15°C / +55°C -15°C / +55°C

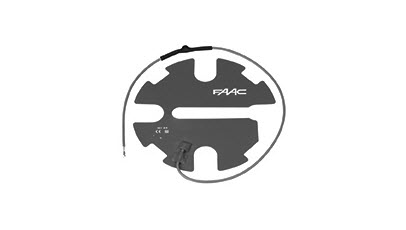

Operating ambient temperature with heater	-25°C / +55°C -25°C / +55°C -25°C / +55°C -25°C / +55°C
Dimensions of underground structure (WxDxH)	560 x 560 x 950 mm 560 x 560 x 950 mm 560 x 560 x 1,220 mm 560 x 560 x 1,220 mm
Excavation dimensions (WxDxH)	1,000 x 1,000 x 1,250 mm 1,000 x 1,000 x 1,250 mm 1,000 x 1,000 x 1,540 mm 1,000 x 1,000 x 1,540 mm
Connection cable	Standard 16+1 conductors, minimum section 1,5mm (not supplied) Standard 16+1 conductors, minimum section 1,5mm (not supplied) Standard 16+1 conductors, minimum section 1,5mm (not supplied) Standard 16+1 conductors, minimum section 1,5mm (not supplied)
Max connection cable length	50 m 50 m 50 m 50 m
