J275F
Type of operator
Fixed
Height
600 - 800 mm
TRỤ CHẶN XE CỐ ĐỊNH J275F
The Fixed FAAC J275 traffic bollard does not require invasive installation work, nor electrical wiring.
Therefore it is suited for permanent installations to close off pedestrian areas or for mixed installations where other automatic or semi-automatic bollards are present.
- Power supply and wiring not required
- Simple installation and limited digging operations
- Observance of aesthetic consistency in mixed installations with other retractable bollards
Có thể bạn quan tâm: J355 M30-P1 F J355 M30-P1 HA J275SA
THÔNG SỐ KỸ THUẬT
| Model |
J275 F H600
J275 F H600
Stainless steel J275 F H800
J275 F H800
Stainless steel |
| Height of cylinder from ground |
600 mm
600 mm
800 mm
800 mm
|
| Cylinder diameter |
275 mm
275 mm
275 mm
275 mm
|
| Type of cylinder material |
Steel S235JR EN
10219 (4mm thick) Satin-finished AISI
316L (3mm thick) Steel S235JR EN
10219 (4mm thick) Satin-finished AISI
316L (3mm thick) |
| Type of cylinder treatment |
Cataphoresis and polyester powder paint, dark grey metallised RAL 7021
Satin finish
Cataphoresis and polyester powder paint, dark grey metallised RAL 7021
Satin finish
|
| Type of head material |
Aluminium RAL
9006 Aluminium RAL
9006 Aluminium RAL
9006 Aluminium RAL
9006 |
| Reflecting strip height |
55 mm
55 mm
55 mm
55 mm
|
| Standard reflecting strip colour |
Orange
Orange
Orange
Orange
|
| Break-in resistance |
35000 J
35000 J
35000 J
35000 J
|
| Overall weight |
34 Kg
34 Kg
38 Kg
38 Kg
|
| Dimensions of underground structure (WxDxH) |
450 x 450 x 55 mm
450 x 450 x 55 mm
450 x 450 x 55 mm
450 x 450 x 55 mm
|
| Excavation dimensions (WxDxH) |
750 x 750 x 150 mm
750 x 750 x 150 mm
750 x 750 x 150 mm
750 x 750 x 150 mm
|
MÔ HÌNH
|
Model |
Height |
Finish |
Item code |
|---|---|---|---|
|
J275 F 600 |
600 mm |
painted steel |
116020 |
|
J275 F 800 |
800 mm |
|
116021 |
The product comes with:
- a 4 mm steel cylinder cataphoresis treated and painted
- powder coated dark grey metallised RAL 7021
- flashing light ring with central LED
|
Model |
Height |
Finish |
Item code |
|---|---|---|---|
|
J275 F 600 |
600 mm |
satin-finished AISI 316L stainless steel |
116040 |
|
J275 F 800 |
800 mm |
|
116041 |
The product comes with:
- 3 mm thick stainless steel cylinder with satin-finished treatment
- flashing light ring with central LED
PHỤ KIỆN VÀ LINH KIỆN
Accessories

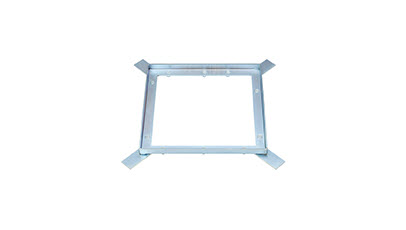

Fixed bollard fixing frame JPF275
Item code: 116120
Optional accessories
Pit cover JC275
Item code: 116201
