J355 M30-P1 F
Type of operator
Fixed
Height
1,000 mm
TRỤ CHẶN XE AN NINH CỐ ĐỊNH J355 M30-P1 F
The Fixed FAAC J355 F M30-P1 bollard is designed and tested to protect sensitive areas such as airports, embassies, consulates, banks, ports, etc.
The Fixed FAAC J355 F M30-P1 bollard has successfully passed the virtual ASTM F 2656-07 test.
Classification M30-P1 indicates that the FAAC FAAC J355 F bollard can stop a 6,800 kg lorry travelling at 50 km/h (=30 mph) with just 1 metre of total penetration (P1).
- Tested according to US ASTM F 2656-07 M30 standards for double unit installations.
- "Shallow Mounted" concept: extremely shallow excavation depth required.
- aesthetic coherence complete with retractable models (HA); perfect for mixed installations.
Có thể bạn quan tâm: J355 M30-P1 HA J275F J275SA
THÔNG SỐ KỸ THUẬT
| Model |
J355 F M30-P1
J355 F M30-P1 INOX
|
| Height of cylinder from ground | 1.000 mm |
| Cylinder diameter | 355 mm |
| Type of cylinder material | Steel S355JR EN10210 (16mm thick) |
| Type of cylinder treatment |
Cataphoresis and polyester powder paint, dark grey metallised RAL 7021
Satin-finished AISI 316L jacket
|
| Type of head material | Aluminium RAL 9006 |
| Reflecting strip height | 55 mm |
| Standard reflecting strip colour | White |
| Break-in resistance | 656000 J |
| Overall weight | 652 Kg |
| Excavation dimensions (WxDxH) | 4,000 x 2,300 x 350mm |
MÔ HÌNH
|
Model |
Height |
Finish |
Item code |
|---|---|---|---|
|

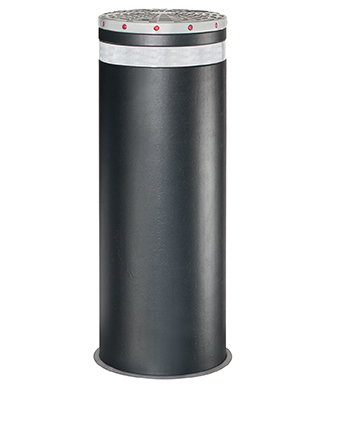

J355 F M30-P1 |
1,000 mm |
painted steel |
116022 |
The product comes with:
- 16 mm thick steel cylinder with cataphoresis treatment and painted
- powder coated dark grey metallised RAL 7021
- flashing light ring with central LED
- modular supporting structure to be buried
|
Model |
Height |
Finish |
Item code |
|---|---|---|---|
|
J355 F M30-P1 |
1,000 mm |
satin-finished AISI 316L stainless steel |
116042 |
The product comes with:
- 16 mm thick steel cylinder with cataphoresis treatment and satin-finished stainless steel «sleeve»
- flashing light ring with central LED
- modular supporting structure to be buried
PHỤ KIỆN VÀ LINH KIỆN
Accessories

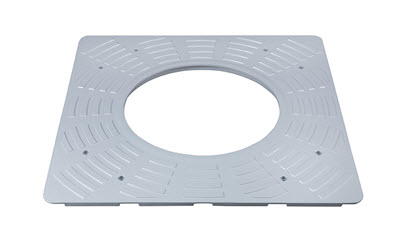

Upper cover J355 M30
Item code: 63000324
Spares
If you are interested in a spare part, go to the spare parts area. ATTENTION: (The area will not be
Item code:
