J200HA

Type of operator

Automatic

Height

600 mm

TRỤ CHẶN XE TỰ ĐỘNG J200HA

The Automatic retractable FAAC J200 HA bollard is particularly suited to regulating traffic in residential areas, guaranteeing intelligent control, while maintaining the aesthetic impact. It can be activated with controls performed by authorised personnel or with automatic controls at preset times.

Fast and silent movement
A streamlined product, configurable by selecting the desired installation accessories
Easy to transport, store and install, thanks to the limited weight of the product
Simplified maintenance (possible with just one person)

Có thể bạn quan tâm: J355 M30-P1 F J355 M30-P1 HA J275F

THÔNG SỐ KỸ THUẬT

Model	J200 HA H600 J200 HA H600 Stainless steel
Type of operator	Hydraulic operator Hydraulic operator
Height of cylinder from ground	600 mm 600 mm
Cylinder diameter	200 mm 200 mm
Type of cylinder material	Steel S235JRG2 EN 10277 (6mm thick) Satin-finished AISI 316L (6mm thick)
Type of cylinder treatment	Cataphoresis and polyester powder paint, dark grey metallised RAL 7021 Satin finish
Type of head material	Aluminium RAL 9006 Aluminium RAL 9006
Rise time	~5 s ~5 s
Descent time	~7 s ~7 s

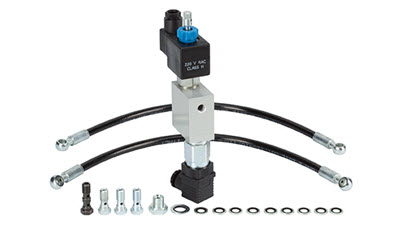

Emergency descent device	YES (optional) YES (optional)
Emergency descent time	~7 s ~7 s
Obstacle detection device while rising	YES (optional) YES (optional)
Release device	YES (optional) YES (optional)
Power Supply Voltage	230V~ 50(60Hz) 230V~ 50(60Hz)
Max Power	230 W 230 W
Hydraulic unit protection class	IP67 IP67
Type of use	Use in residential areas Use in residential areas
Reflecting strip height	25 mm 25 mm
Standard reflecting strip colour	Orange Orange
Overall weight	90 Kg 90 Kg
Operating ambient temperature	-15°C / +55°C -15°C / +55°C

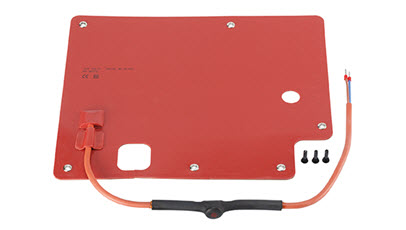

Operating ambient temperature with heater	-25°C / +55°C -25°C / +55°C
Dimensions of underground structure (WxDxH)	400 x 500 x 800 mm 400 x 500 x 800 mm
Excavation dimensions (WxDxH)	700 x 700 x 1,100 mm 700 x 700 x 1,100 mm
Connection cable	Standard 16+1 conductors, minimum section 1,5mm (not supplied) Standard 16+1 conductors, minimum section 1,5mm (not supplied)
Max connection cable length	50 m 50 m

MÔ HÌNH

Model	Height	Finish	Item code

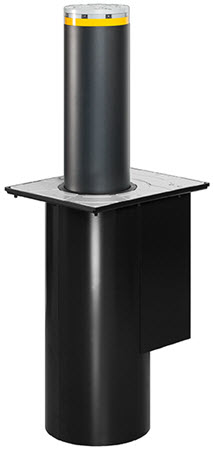

Model	J200 HA 600	600 mm	painted steel	116500

The product comes with:

6 mm thick steel cylinder with cataphoresis treatment and painted
powder coated dark grey metallised RAL 7021
hydraulic lock in raised position (in the event of a power cut) with special release key
support structure to be cemented with cataphoresis treatment (pits not required)
Release key (1 piece)

Model	Height	Finish	Item code
Model	J200 HA 600	600 mm	satin-finished AISI 316L stainless steel	116505

The product comes with:

6 mm thick stainless steel cylinder with satin-finished treatment
hydraulic lock in raised position (in the event of a power cut) with special release key
support structure to be cemented with cataphoresis treatment (pits not required)
Release key (1 piece)
