J200SA
Type of operator
Semi-Automatic
Height
600 mm
TRỤ CHẶN XE BÁN TỰ ĐỘNG J200SA
This traffic bollard resolves the problems of transit and/or parking control without requiring electric power (particularly suitable for town centres and areas difficult to wire). The gas operator allows it to be lifted automatically with a key. It is lowered by pressing the head of the bollard.
- Power supply and wiring not required
- Simple and safe movement, thanks to the specific unlocking key
- A streamlined product, configurable by selecting the desired installation accessories
- Easy to transport, store and install, thanks to the limited weight of the product
- Low position lock guaranteed against accidental release
- Simplified maintenance (possible with just one person)
Có thể bạn quan tâm: J355 M30-P1 F J355 M30-P1 HA J275F
THÔNG SỐ KỸ THUẬT
| Model |
J200 SA H600
J200 SA H600 Stainless steel
|
| Type of operator |
Single-acting gas operator
Single-acting gas operator
|
| Height of cylinder from ground |
600 mm
600 mm
|
| Cylinder diameter |
200 mm
200 mm
|
| Type of cylinder material |
Steel S235JRG2 EN 10277 (6mm thick)
Satin-finished AISI 316L (6mm thick)
|
| Type of cylinder treatment |
Cataphoresis and polyester powder paint, dark grey metallised RAL 7021
Satin finish
|
| Type of head material |
Aluminium RAL 9006
Aluminium RAL 9006
|
| Release device |
Key operated (supplied)
Key operated (supplied)
|
| Reflecting strip height |
25 mm
25 mm
|
| Standard reflecting strip colour |
Orange
Orange
|
| Overall weight |
82 Kg
82 Kg
|
| Dimensions of underground structure (WxDxH) |
400 x 500 x 800 mm
400 x 500 x 800 mm
|
| Excavation dimensions (WxDxH) |
700 x 700 x 1,100 mm
700 x 700 x 1,100 mm
|
MÔ HÌNH
|
Model |
Height |
Finish |
Item code |
|---|---|---|---|
|

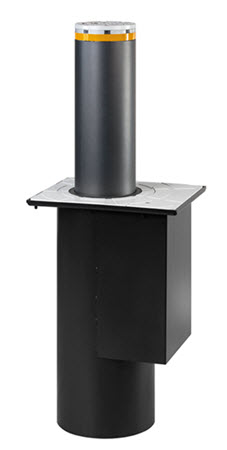

J200 SA 600 |
600 mm |
painted steel |
116508 |
The product comes with:
- 5 mm thick steel cylinder with cataphoresis treatment and painted
- powder coated dark grey metallised RAL 7021
- support structure to be cemented with cataphoresis treatment (pits not required)
- Release key (1 piece)
|
Model |
Height |
Finish |
Item code |
|---|---|---|---|
|
J200 SA 600 |
600 mm |
satin-finished AISI 316L stainless steel |
116509 |
The product comes with:
- 6 mm thick stainless steel cylinder with satin-finished treatment
- support structure to be cemented with cataphoresis treatment (pits not required)
- Release key (1 piece)
PHỤ KIỆN VÀ LINH KIỆN
Optional accessories

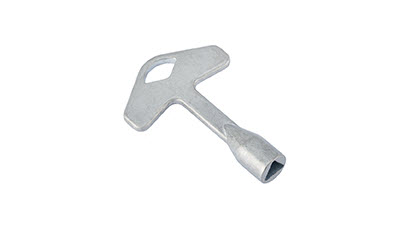

Release keys kit (5 keys)
Item code: 390084

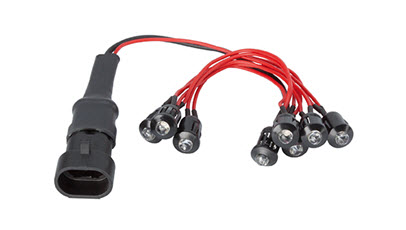

LED lights kit J200
Item code: 116504
Spares
If you are interested in a spare part, go to the spare parts area. ATTENTION: (The area will not be
Item code:
