E850
Use application
For sliding gate automations
Có thể bạn quan tâm: 844T 578D - 780D E721
THÔNG SỐ KỸ THUẬT
| Model | E850 |
| Power Supply Voltage | 230V~ (+6%-10%) 50(60) Hz |
| Max Power | 7 W |
| Max. engine power | 1,800 W |
| Max accessories load | 500 mA |
| Accessory power supply voltage | 24V  |
| Programming mode | 3 keys (+, -, F) and display |
| Operating logic | Automatic, Automatic 1, Semi-automatic, Semi-automatic step by step, Automatic photocell, Manned, Custom |
| Programmable functions | Logic, Pause time, Power, Loop 1 and 2, Opening photocell, Work time, LED output, Failsafe output, BUS output, Service request |
| Work time | Programmable (from 0 to 4 min) |
| Pause time | Programmable (from 0 to 4 min) |
| Engine power adjustment | Programmable on 50 levels |
| Terminal board input | Loop 1, Loop 2, Open, Close, Closing safety devices, Opening safety devices, Power supply 230V~ +Earth |
| Terminal boards output | Flashing light, Electric brake, 24V power supply, Failsafe, Status output, Inverter control, BUS, 3 outputs for inverter, 1 programmable output in 18 different functions |
| Rapid connector | Opening and closing limit switch, Opening and closing deceleration |
| Integrated detector 2 independent channel | Real time self-calibration, sensitivity independent from loop geometry, loop operating frequency adjustment, message of “loop engaged” with LED display, loop status can be directed to programmable outputs, adjustment time over 2 levels. |
| Protection Fuses | F1=F 5A-250V~ F2=T 0.8A-250V~ |
| Operating ambient temperature | -20 °C ÷ +55 °C |
MÔ HÌNH
|
Model |
Item code |
|---|---|
|

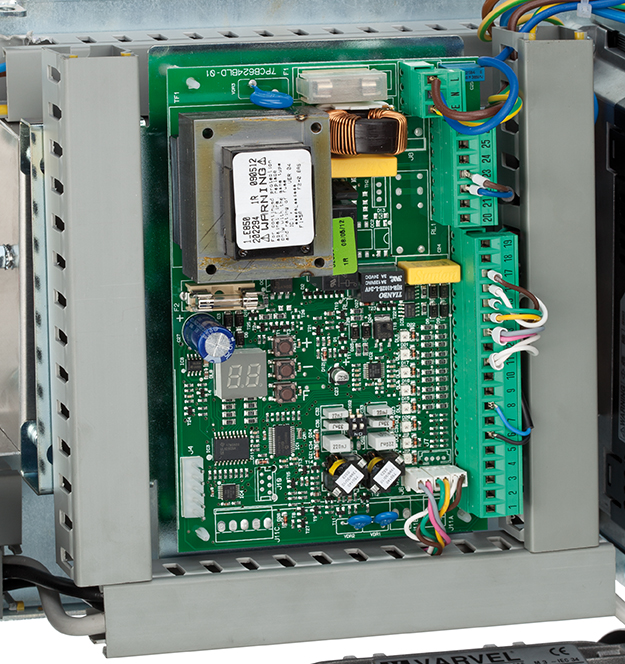

E850 electronic control board |
63002935 |
