E721
Use application
For sliding gate automations
Bo E721
Can only be used on gearmotors for sliding gate C720 e C721.
Equipped with OMNIdec and 2easy technology. Compatible with all 3-pin receivers and all photocells (even non-BUS).
Có thể bạn quan tâm: E850 844T 578D - 780D
THÔNG SỐ KỸ THUẬT
| Model | E721 |
| Power Supply Voltage | 230V~ (+6% -10%) 50 Hz |
| Max Power | 10 W |
| Max. engine power | 220 W (E720) - 300W (E721) |
| Max accessories load | 500 mA |
| Accessory power supply voltage | 24V  |
| Programming mode | 3 keys (+, -, F) and LCD display |
| Operating logic | Automatic (A), Semi-automatic (E), Automatic Timer (At), Automatic Safety (SA), Automatic car parks (AP), Dead man (C), Automatic safety (S), ”Stepped” safety (SP), ”Stepped” semi-automatic (EP), Semi-automatic B, Mixed logic (C) |
| Programmable functions | Logic, Pause time A, Pause time B, Thrust, Opening speed, Closing speed, Deceleration spaces, Pre-flashing, Opening safety devices logic, Closing safety devices logic,Obstacle detection, Partial opening, Master/Slave |
| Work time | Programmable (from 0 to 9 min and 50 sec) |
| Pause time | Programmable (from 0 to 9 min and 50 sec) |
| Engine power adjustment | Programmable on 50 levels |
| Speed adjustment | Programmable on 10 levels |
| Terminal boards input | BUS 2easy 5 inputs (open A, open B, close, stop, opening safety devices, closing safety device) |
| Terminal boards output | 1 programmable output (failsafe, alarms, LED, courtesy light, can be activated with radio channel 2), flashing light |
| Rapid connector | OmniDEC (XF 433 or XF 868) |
| Protection Fuses | Self-resetting |
| Operating ambient temperature | -20 °C ÷ +55 °C |
MÔ HÌNH
|
Model |
Item code |
|---|---|
|

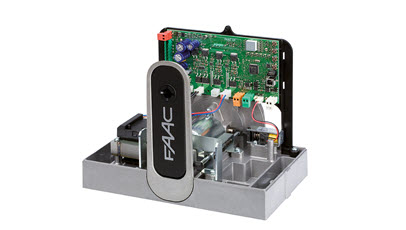

E721 electronic control board (incorporated in automation) compatible with C720 and C721 |
63002485 |
