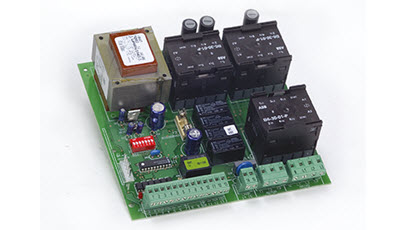

844T
Use application
For sliding gate automations
Có thể bạn quan tâm: E850 578D - 780D E721
THÔNG SỐ KỸ THUẬT
| Model | 884T |
| Power Supply Voltage | 230V~ 3PH (+6% -10%) 50 (60) Hz - 400V~ 3PH+N (+6% -10%) 50(60) Hz |
| Max. engine power | 1,300 W |
| Max accessories load | 500 mA |
| Accessory power supply voltage | 24V |
| LED power supply voltage | 24V~ (5W max) |
| Programmable functions | Pause time (5/10/15/30/60/120/180 sec), Logic A1/A2/S1/S2/E1/E2/B/C, Pre-flashing lights |
| Work time (time-out) | 255 sec. |
| Terminal board input | Open, partial open, stop, closing safety devices, limit switch |
| Terminal boards output | LED, flashing light, motor, accessories power supply 24V |
| Protection Fuses | 5 A transformer - 1.6 A accessories |
| Operating ambient temperature | -20 °C ÷ +55 °C |
MÔ HÌNH
|
Model |
Item code |
|---|---|
| 844T electronic control board (incorporated in automation) | 202254 |
PHỤ KIỆN VÀ LINH KIỆN
Accessories
Enclosure mod. L for electronic control boards
Item code: 720118
Enclosure mod. E for electronic control boards
Item code: 720119
Enclosure mod. LM for electronic control boards
Item code: 720309
Release lock with key
Thông tin chi tiết
Item code: 712805
Spares
If you are interested in a spare part, go to the spare parts area. ATTENTION: (The area will not be
Item code:
