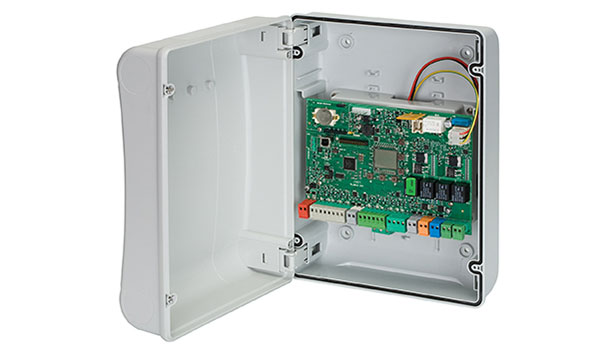

E124S

Use application

For swing-leaf gate

Bo E124S

It is compatible with all receivers (3-pin or 5-pin or external) and all photocells (BUS as well as traditional).

This product can become SAFE &GREEN with appropriate accessories

Có thể bạn quan tâm: E850 844T 578D - 780D

THÔNG SỐ KỸ THUẬT

Model	E124
Power Supply Voltage	230V~ (+6%-10%) 50(60) Hz
Max Power	4 W Stand-by - approx. 400 W max. W
Max. engine power	7 A
Max accessories load	500 mA 24V - 500 mA BUS 2easy
Accessory power supply voltage	24V
Programming mode	3 keys (+, -, F) and LCD display, via PC with USB cable
Operating logic	Automatic (A), Semi-automatic (E), Automatic 1 (A1), "Stepped" automatic (AP), Dead man (C), Automatic safety (S), ”Stepped” safety (SP), ”Stepped” semi-automatic (EP), Semi-automatic B (B), Mixed logic (BC), Custom (customisable, programmable by the installer via PC)
Programmable functions	(*) Logic, pause time A, pause time B, thrust, speed, deceleration spaces, leaf delay, wind resistant, reverse-stroke, soft-touch, stroke at opening and closing, initial thrust, deceleration speed, LED, failsafe, programming of 2 Easy BUS devices, service request, power-safe, battery charger timer function, battery operation, clock, time-out, pre-flashing time, motor type, encoder sensitivity
Work time	Programmable (from 0 to 10 min)
Pause time	Programmable (from 0 to 10 min)
Engine power adjustment	Programmable on 50 levels
Speed adjustment	Programmable on 10 levels
Terminal board input	BUS 2easy, Inputs completely programmable via PC (open A, open B, close, priority open, priority close, emergency close, emergency open, stop, opening safety device, closing safety device), Inputs for 4 limit switches (opening, closing, engine 1/engine 2), 2-engine connection inputs, encoders
Terminal boards output	2 programmable multifunction outputs
Rapid connector	OMNIDEC (XF433 or XF868), X-COM, 5 pin board insertion for MINIDEC, DECODER, RP/RP2 receiver
Protection Fuses	Self-resetting
Operating ambient temperature	-20 °C ÷ +55 °C
