E045

Use application

For swing-leaf gate

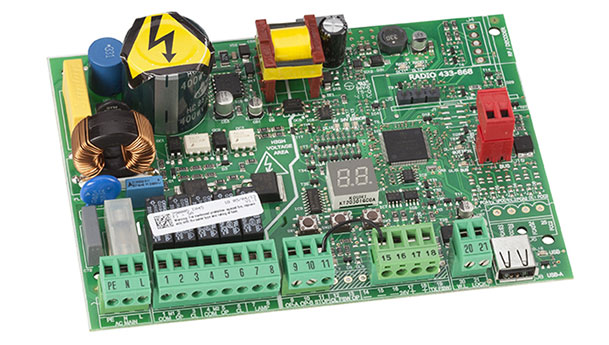

Bo E045

The E045 can control one or two operators.

Thanks to the new 2easy and OMNIdec technologies, it is compatible with the quick insertion module XF 433/XF 868 (connector set-up), the external receivers and with the XP 15B and XP 20B D photocells ("BUS" connection).

The BUS XIB interface is included to connect traditional photocells.

Có thể bạn quan tâm: E850 844T 578D - 780D

THÔNG SỐ KỸ THUẬT

Model	E045
Power Supply Voltage	Switching power supply 230V~ (± 15%) 50(60) Hz
Max Power	4W Stand-by W
Max. engine power	800W
Max accessories load	500 mA 24V - 500 mA BUS 2easy
Electric lock max load	FAAC lock (12V~ - 24V )
Programming mode	LED display and buttons
Status signalling	Display and LED
Terminal board input	Open, Open pedestrian leaf, Stop (closed), BUS 2easy, Power supply + Earth
Terminal boards output	Flashing light, Engine, 24V __logo__DC__ accessories power supply, 24V __logo__DC__ LED, 12V~ Electric lock control power supply
Rapid connector	XF 433/868 module for OMNIDEC, USB DECODING
Protection Fuses	1 (2.5A)
Operating ambient temperature	-20 °C ÷ +55 °C

FUNCTIONS (PROGRAMMING VIA DISPLAY AND BUTTONS)

Basic programming

Operating logic	Semi-automatic, Automatic, Semi-automatic stepped, Automatic stepped, Automatic stepped safety device, Semi-automatic B, C Dead man
Pause time	Programmable (from 0 to 9 min 50 sec)
Number of motors	Selectable
Engine power adjustment	Adjustable on 50 levels for each motor independently
Encoder use	Selectable
Leaf delay time in closing	Programmable (from 0 to 1 min 30 sec)
BUS 2-Easy device registration	Selectable
Motor Power	1 and 2 (independently)
Working time learning	Simple self-learning (max 4 min and 10 sec). Self-learning working and deceleration time of two leaves in one complete working cycle only. With SAFEcoder absolute encoder, the open/closed/deceleration positions are learned
Advanced programming
Reversing stroke and ram stroke	Selectable (to facilitate the release and the electric lock)
Leaf delay in opening	Selectable
Leaf 1 deceleration	Programmable, percentage of the total stroke (from 0% to 99%)
Leaf 2 deceleration	Programmable, percentage of the total stroke (from 0% to 99%)
Pre-Flashing
Anti-crushing sensitivity	Selectable (to facilitate the release and the electric lock)
Mechanical stop angle search	Selectable if the ENCODER is present
File control via USB-A
Board software upload	Selectable
Board configuration upload	Selectable
Radio codes list upload	Selectable
Download configuration from board	Selectable
Download radio codes from board	Selectable
