E024S

Use application

For swing-leaf gate

Bo E024S

Thanks to the new 2easy and OMNIdec technologies, it is compatible with the quick insertion module XF 433/XF 868 (connector set-up), the external receivers and with the XP 15B and XP 20B D photocells ("BUS" connection).

The BUS XIB interface is included to connect traditional photocells.

Có thể bạn quan tâm: E850   844T   578D - 780D

THÔNG SỐ KỸ THUẬT

Model E024S
Power Supply Voltage 230V~ (+6%-10%) 50 Hz
Max Power 4 W
Max. engine power 150 W x 2
Max accessories load 250 mA - 400 mA BUS 2easy
Programming mode Programming via buttons
Operating logic A, E, AP, EP, A1, B, C
Programmable functions Logic (A, E, AP, EP, A1, B, C), Speed (high/low*), Pause time, 2 leaf closing delay
Work time (time-out) 5 minutes (fixed)
Pause time Varies according to learning (max. 10 min.)
Terminal board input Open A, Open B, Stop, BUS (I/O)
Terminal boards output Engines, Flashing lights, Accessories power supply, Electric lock, Service light contact (90 s. fixed)
Rapid connector Battery power supply, Module XF 433 or XF 868
Integrated radio encoding DS, SLH, RC, LC (max. 250 channels)*
Protection Fuses F1 = self-resetting - F2 = T2A-250V~
Operating ambient temperature -20 °C ÷ +55 °C

* Motor types (391, 413, 415, 390, 770N, S450H); wind resistant, reverse stroke, soft touch, pre-flashing, leaf opening/closing delay, pause time

MÔ HÌNH

Model

Item code

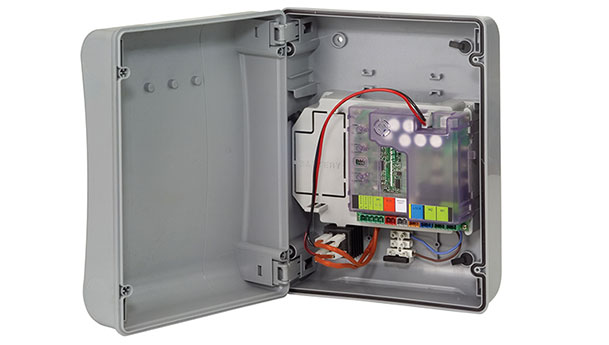

E024S Electronic equipment with enclosure

790286

PHỤ KIỆN VÀ LINH KIỆN

Accessories

BUS XIB interface If using board E045 or E024S with photocell no BUS)

Item code: 790062

Enclosure mod. L for electronic control boards

Item code: 720118

Enclosure mod. E for electronic control boards

Item code: 720119

Enclosure mod. LM for electronic control boards

Item code: 720309
