740D
Use application
For sliding gate automations
Có thể bạn quan tâm: E850 844T 578D - 780D
THÔNG SỐ KỸ THUẬT
| Model | 740D |
| Power Supply Voltage | 230V~ (+6% -10%) 50 (60) Hz |
| Max Power | 10 W |
| Max. engine power | 1,000 W |
| Max accessories load | 0.5 A |
| Programming mode | 3 keys (+, -, F) and display, “basic“ and “advanced“ mode |
| Operating logic | Automatic/”Step by step” automatic/Semi-automatic/Safety/Semi-automatic B/ Manned C/ Step by step semi-automatic /Mixed logic B+C |
| Programmable functions | Operating logic, Pause time, Thrust power, Gate direction, Torque at initial thrust, Braking, Failsafe, Pre-flashing, LED, Timed output, Opening and closing safety devices, Encoder (optional) or integrated according to gearmotor for anti-crushing electronic safety device, Deceleration control and partial opening, Decelerations, Partial opening time, Work time, Service request, Cycle counter |
| Work time | Programmable (0 to 4 min.) |
| Pause time | Programmable (0 to 4 min.) |
| Engine power adjustment | Adjustable on 50 levels |
| Terminal boards input | Open, Partial open, Opening safety device, Closing safety device, Stop, Edge, Power supply + Earth |
| Terminal boards output | Flashing light, Motor, Accessories power supply 24V  - Indicator light 24V / Timed output-Failsafe |
| Rapid connector | 5-pin MINIDEC board insertion, DECODER or RP Receivers, Opening and closing limit switches, Encoder (optional) |
| Protection Fuses | 2 |
| Operating ambient temperature | -20 °C ÷ +55 °C |
MÔ HÌNH
|
Model |
Item code |
|---|---|

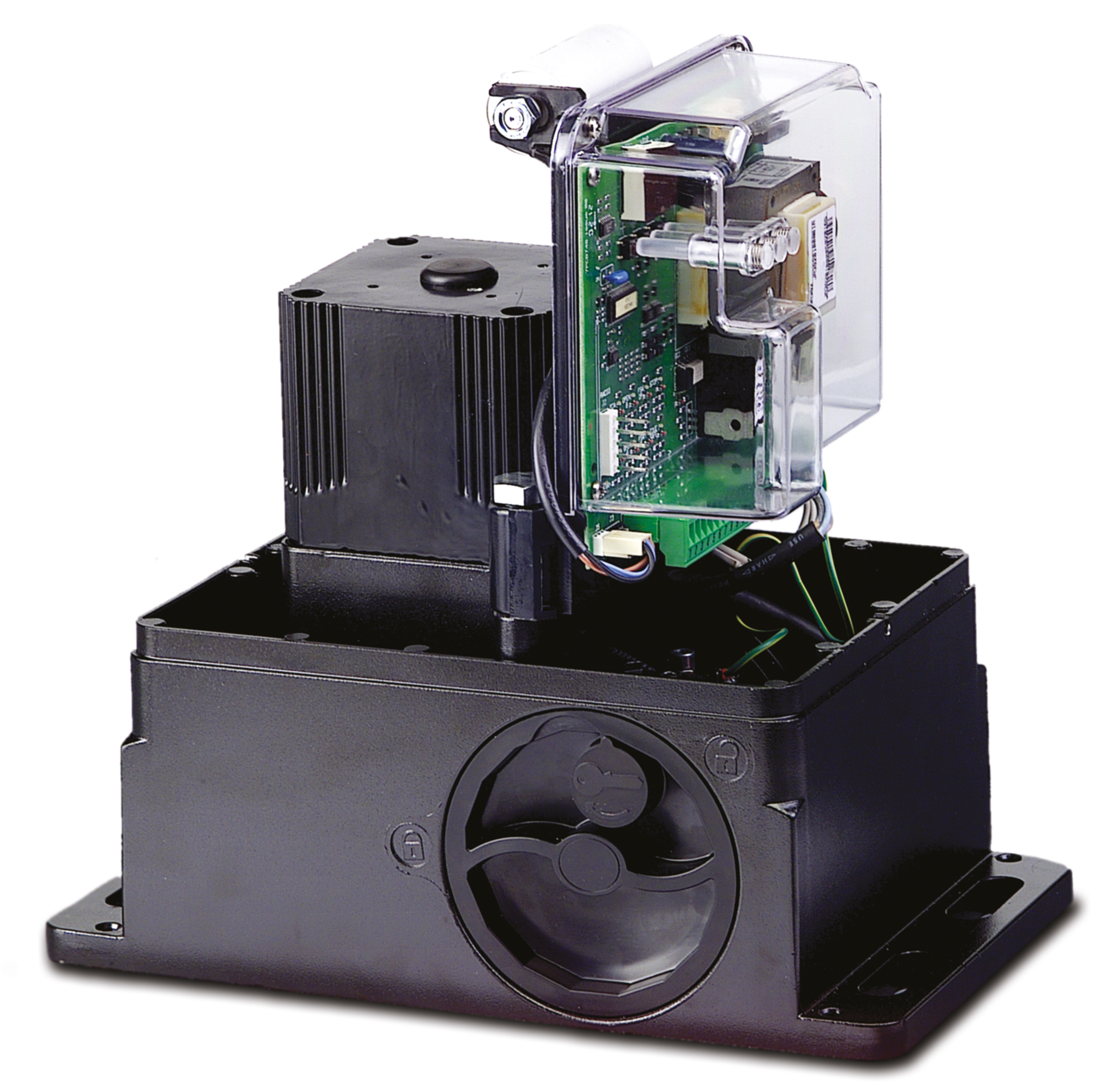

| 740D electronic control board (incorporated in automation) | 202269 |
