JE275

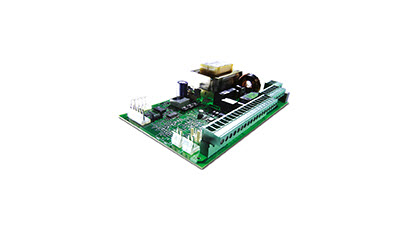

Electronic control board JE275

For use with all automatic bollards: J275 HA, J355 M30-P1 HA and J200 HA.

Compatible with accessories that work with two-wire cabling (FAAC proprietary protocol).

Model	JE275
Power Supply Voltage	230V~ (+ 6% - 10%) 50/60 Hz
Max Power	7 W
Max. engine power	1,200W
Accessory power supply voltage	24V
Max accessories load	500mA
Operating ambient temperature	-20°C ÷ +55°C
Protection Fuses	F1 = 10A-250~ F2=T 0.8A-250~
Operating logic	Automatic, Automatic 1, Semi-automatic car park, Automatic-Car park, Condominium, Automatic-Condominium J Series, Dead man, Remote, Custom
Work time	Programmable (from 0 to 4 min)
Pause time	Programmable (from 0 to 4 min)
Engine power adjustment	Programmable on 50 levels
Terminal board input	Loop 1, Loop 2, Open, Close, Closing safety devices, Stop, Emergency, 230V~ power supply + Earth
Rapid connector	Opening and closing limit switches, engine capacitor
Terminal boards output	Flashing light, Engine, 24V power supply, Failsafe, Status output, 24V LED, BUS
Rapid connector	Opening and closing limit switches, engine capacitor
Programmable functions	Logic, Pause time, Thrust, Loop l and 2, Torque at initial thrust, Pre-flashing, Slow Closing, Deceleration time, Work time, LED output, Failsafe output, Status output, BUS output, Service Request
Terminal boards output	Flashing light, Engine, 24V power supply, Failsafe, Status output, 24V LED, BUS
Integrated detector 2 independent channel	Real time auto-calibration, Sensitivity independent from loop shapes,Loop operating frequency adjustment, Message of “loop engaged” with LED display,Loop status addressable to programmable outputs, Adjustment time over 2 levels.

Model	Item code
Model	Item code	Circuit board JE275	116300
