S800H

Max width single leaf

2 - 4 m

Max weight

800 Kg

Use frequency

Continuous use

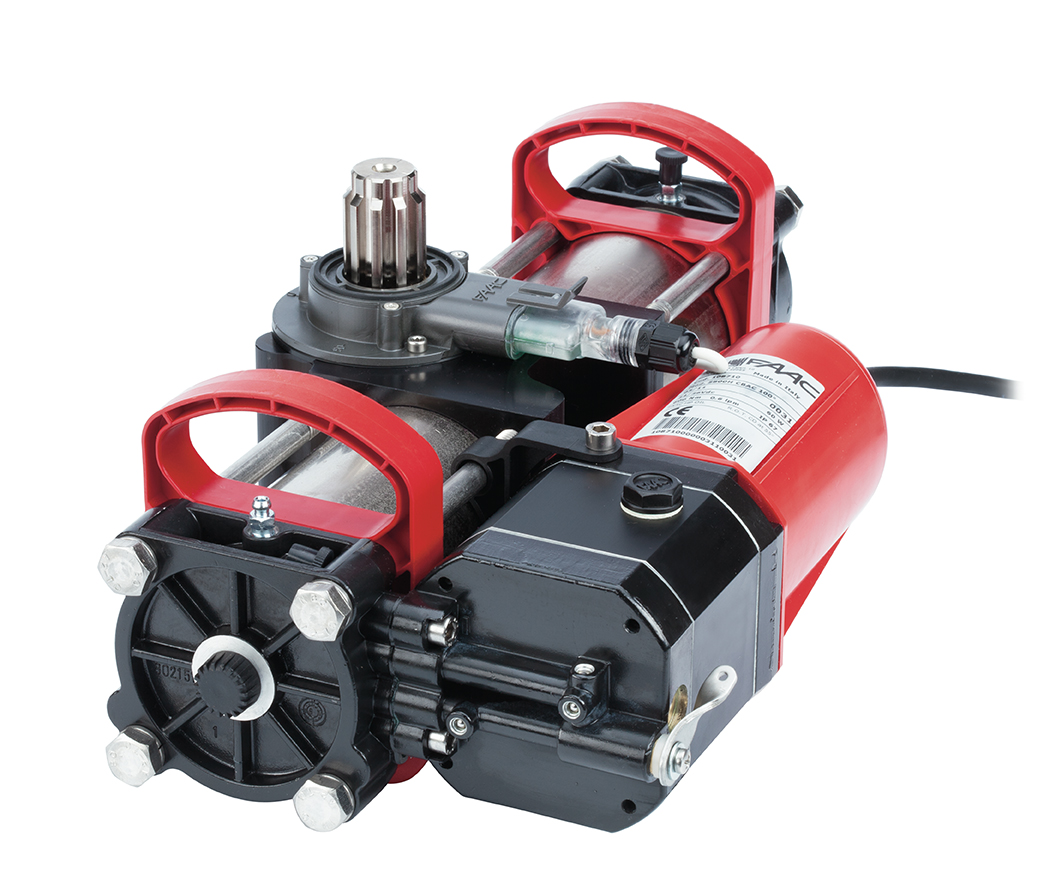

Bộ vận hành S800H ENC

  • Continuous utilisation frequency
  • Integrated magnetic encoder with BUS 2Easy (non-polarised two cables connection). FAAC patented
  • Integrated positive stops, avoiding the installation of mechanical stop plates on the ground for both opening and closing FAAC patented
  • Hybrid technology.
  • Service release device
  • Integrated handles to facilitate movement and installation. FAAC patented
  • Version SBW actuators for use in areas exposed to strong winds.
This product can become SAFE &GREEN with appropriate accessories

Có thể bạn quan tâm: 770N 24V   Roller   Diablo

THÔNG SỐ KỸ THUẬT

Model
S800H CBAC 100°
S800H CBAC 180°
S800H SB 100°
S800H SB 180°
S800H SBW 100°
S800H SBW 180°
Power Supply Voltage 230V~ 50 Hz
Electric motor With brushes 24V
Max Power 60 W
Max angular speed 5.5°/s (with E024S) - 8.2°/s (with E124)
Operating ambient temperature -20 °C ÷ +55 °C
Protection class IP67
Weight 13.2 Kg
Type of oil FAAC HP OIL
Dimensions (WxDxH) Operator 380 X 220 X 140 - carrier case 507 X 283 X 200 mm

MÔ HÌNH



Model

Use

Electronic

equipment

Item code

Max width

single leaf

Max

weight

Use

frequency

S800H CBAC 100°

2 m

800 Kg

Continuous use

Not included

108710

S800H CBAC 180°

2 m

800 Kg

Continuous use

Not included

108712

S800H SB 100°

4 m

800 Kg

Continuous use

Not included

108711

S800H SB 180°

4 m

800 Kg

Continuous use

Not included

108713

S800H SBW 100°

4 m

800 Kg

Continuous use

Not included

108714

S800H SBW 180°

4 m

800 Kg

Continuous use

Not included

108715

The packs include: a hydraulic operator with hydraulic lock in opening/closing (CBAC), without lock (SB or SBW), a magnetic encoder, a release and adjustment key.

The supporting case pack includes: a supporting case in cataphoresis treated aluminium with anti-rotation pin, a cover in polished stainless steel.

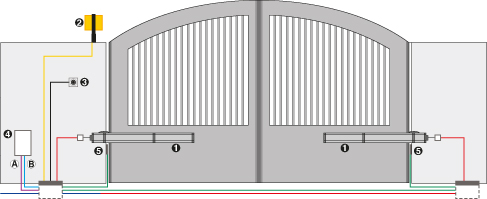

HƯỚNG DẪN LẮP ĐẶT



__logo__WireViolet__ __logo__A__ Low voltage cabling

__logo__WireBlack__ 3x0.50 mm2 cable

__logo__WireGreen__ 2x0.50 mm2 cable

__logo__WireYellow__ 2x1.50 mm2 cable

__logo__WireRed__ 2x0.50 + 2x0.50 mm2 cable

__logo__WireCyan__ __logo__B__ Power cabling (230V)

__logo__WireBlue__ 2x1.5 mm2 +T cable



Ref

Q.ty

Description

Item code

1

2

S800H CBAC 100°

108710

1

2

Supporting case

490112

1

2

Hydraulic release device ( to be used with the code 390972) for actuators CBAC or SBW

390035

1

2

Collar assembly for SB or CBAC or SBW operators (to use with code 390035)

390972

2

1

FAACLIGHT 24V flashing light

410014

3

1

Key operated button T10

401010001-36

4

1

E124 Electronic equipment with enclosure

790284

4

1

XF 433 MHz receiver

319006

5

2

XP 15 B pair of photocells

785149

5

2

Column (Max height 628 mm)

401039

5

2

Foundation plate for SAFEBEAM / XP 15B column

737637

__

1

XT2 433 SLH LR 2-channel transmitter

787007



This solution can also be found in the kit:

HYBRID kit

PHỤ KIỆN VÀ LINH KIỆN

Electronic control boards

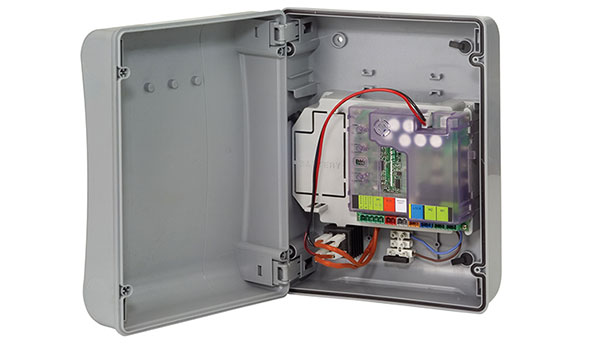

E024S Electronic equipment with enclosure included in 391 E Thông tin chi tiết

Item code: 790286

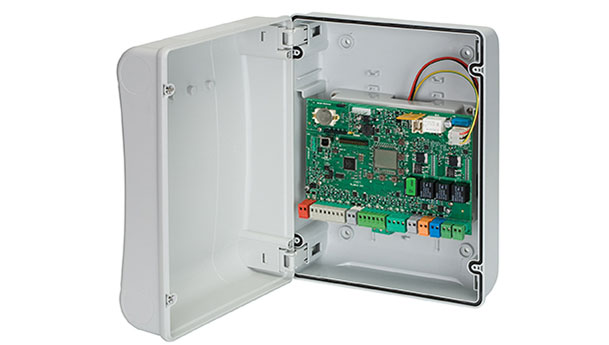

E124 Electronic equipment with enclosure Thông tin chi tiết

Item code: 790284

Accessories

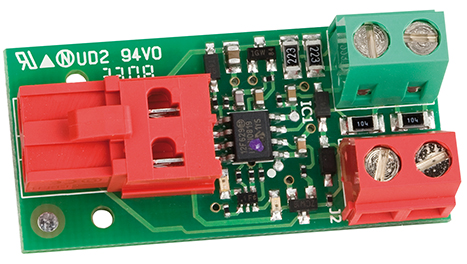

BUS XIB interface If using board E045 or E024S with photocell no BUS)

Item code: 790062

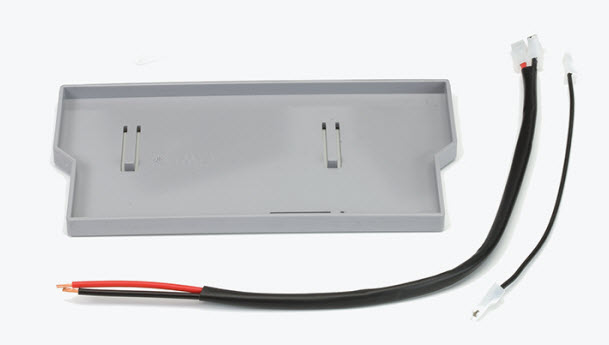

Battery support kit emergency (specific for E124)

Item code: 390926

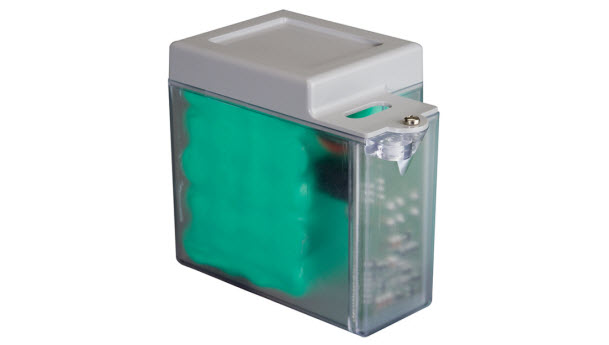

XBAT 24 emergency battery kit (not compatible with E124)

Item code: 390923

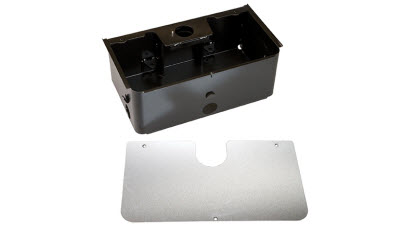

Supporting case

Item code: 490112

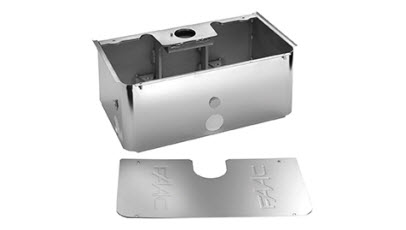

Stainless steel supporting case

Item code: 490113

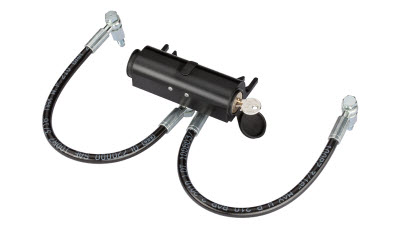

Hydraulic release device (to match with code 390972) for CBAC or SBW actuators

Item code: 390035

Collar assembly for SB or CBAC or SBW operators

Item code: 390972

Release lock with customised key for hydraulic release system

Item code: 71209101-36

Spares

If you are interested in a spare part, go to the spare parts area. ATTENTION: (The area will not be

Item code:
